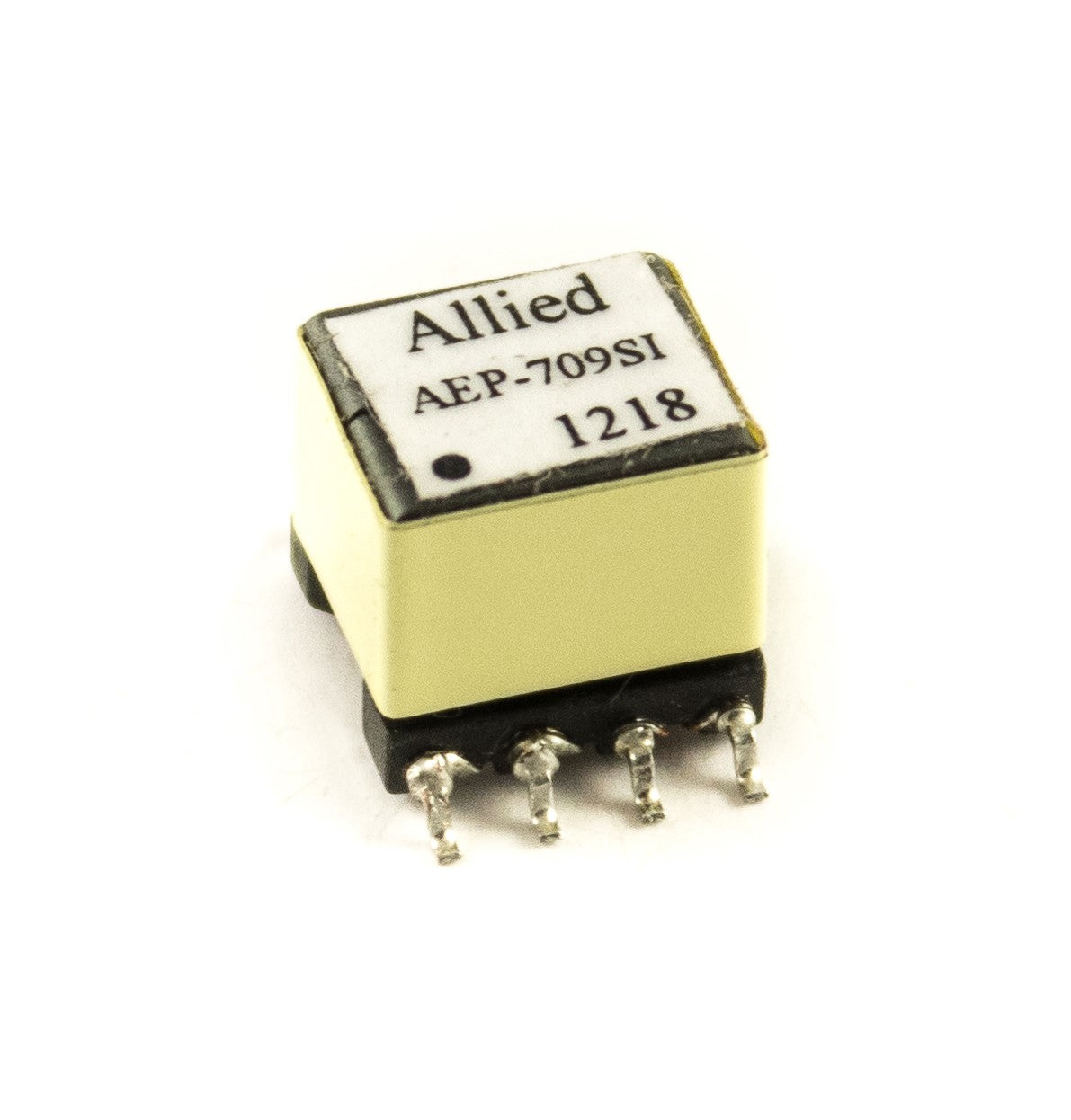

EP7 Design / AEP-709SI

$0.00
  • EP7 Core Design
  • 8 Pin Surface Mount Device
  • Compact Foot Print
  • Power Transformer
  • Operating Temperature: -40°C to +85°C
  • Storage Temperature: -40°C to +85°C
  • Reflow Condition: Maximum reflow temperature is 250ºC/-5ºC time is 20~40 sec.
    (Refer to IPC/JEDECJ-STD-020 standard)
Part Number

Specifications
  • Pins: 8
  • Op Temp Range: -40°C to +85°C
  • Length: 0.512 / 13.0
  • Width: 0.394 / 10.0
  • Height: 0.362 / 9.2
  • Primary Inductance: 2.0uH
  • Turns Ratio: (1 : 1), (1 : 1.8), (1 : 1.8)
  • Geometry: EP7
  • Mounting Type: Surface Mount
    • Download Datasheet
