Allied Components

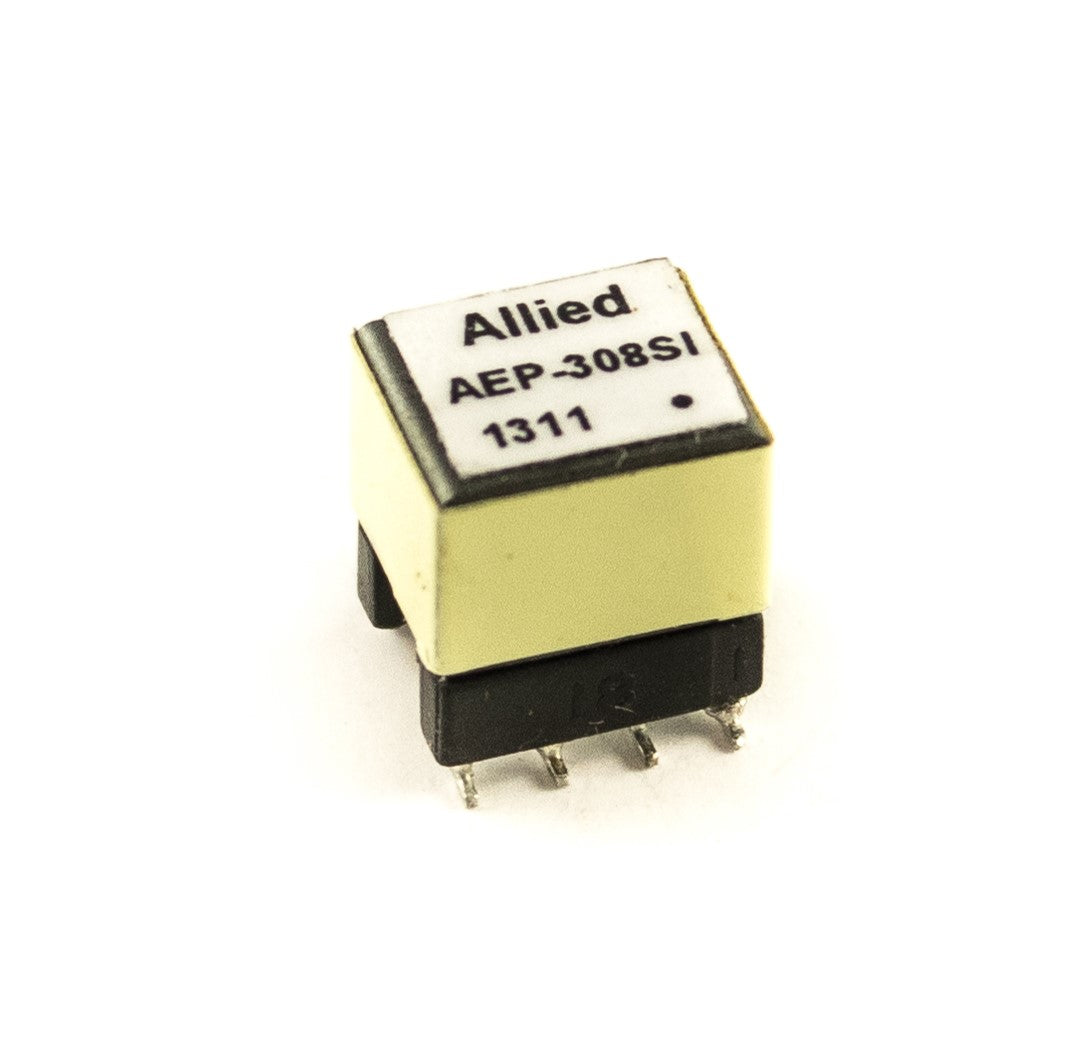

EP7 Design / AEP-308SI

$0.00
  • EP7 Core Design
  • 8 Pin Surface Mount Device
  • Compact Foot Print
  • Operating Temperature: -40°C to +85°C
  • Reflow Condition: Maximum reflow temperature is 250ºC/-5ºC time is 20~40 sec.
    (Refer to IPC/JEDECJ-STD-020 standard)
  • Meets the specifications for basic insulation per EN60950 with working voltage of 250V
Part Number

Specifications
  • Pins: 8
  • Op Temp Range: -40°C to +85°C
  • Length: 0.402 / 10.2
  • Width: 0.394 / 10.0
  • Height: 0.425 / 10.8
  • Primary Inductance: 2.4µh
  • Turns Ratio: 1 : 1.27 : 1.27
  • Geometry: EP7
  • Mounting Type: Surface Mount
    • Download Datasheet
