Allied Components

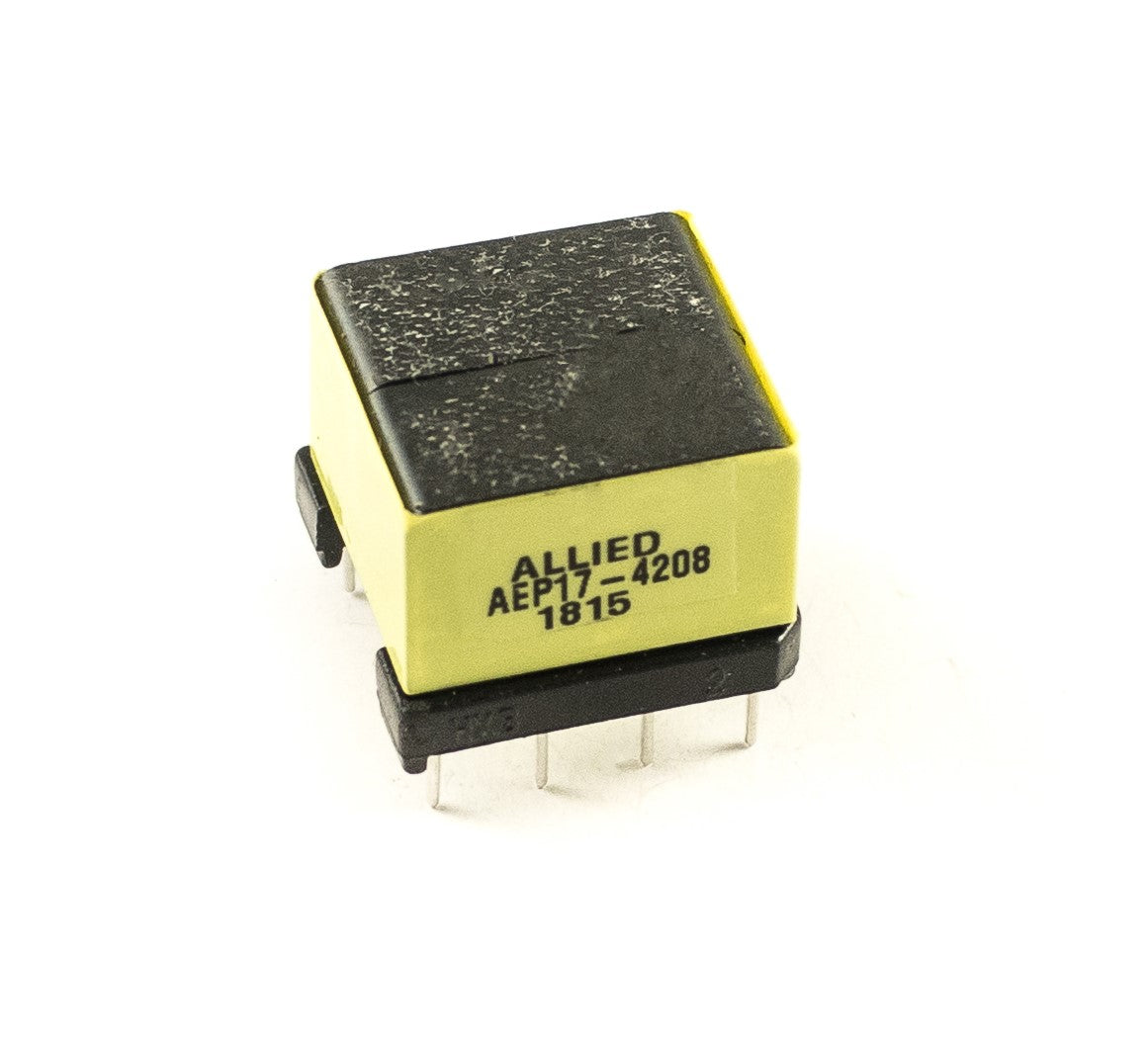

EP17 Design / AEP17-4208

$0.00
  • EP17 Core Design
  • 8 Pin Through Hole Device
  • Compact Foot Print
  • Made with UL Approved Materials
  • Operating Temperature: -40°C to +125°C
Part Number

Specifications
  • Pins: 8
  • Op Temp Range: -40°C to +125°C
  • Length: 0.807 / 20.498
  • Width: 0.807 / 20.498
  • Height: 0.670 / 17.018
  • Primary Inductance: 15.32µh
  • Turns Ratio: 1 : 1.125 : 0.437 : 1.125 : 1.125
  • Geometry: EP17
  • Mounting Type: Through Hole
    • Download Datasheet
