Allied Components

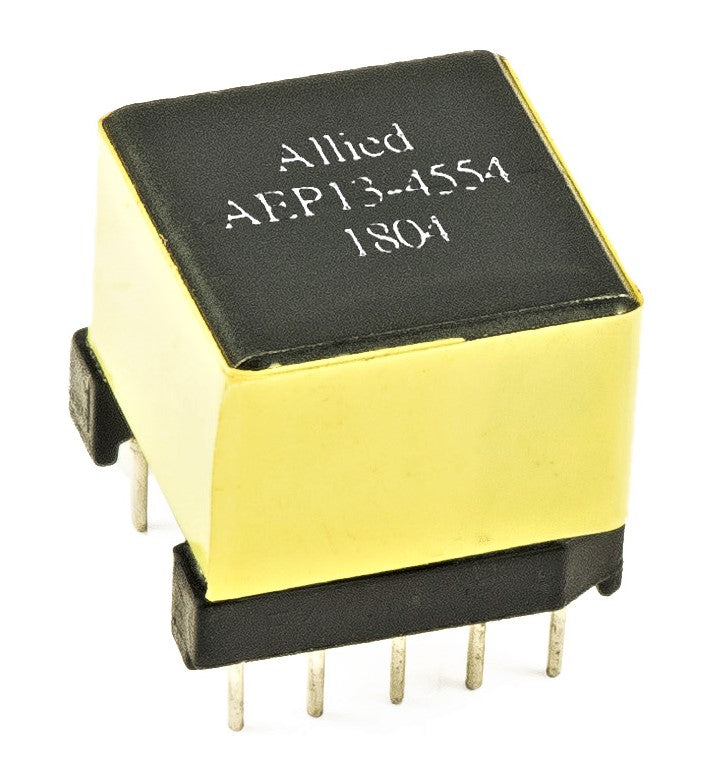

EP13 Design Through Hole / AEP13-4554

$0.00
  • EP13 Core Design
  • 10 Pin Through Hole Device
  • Compact Footprint
  • Operating Temperature: -40°C to +125°C
Part Number

Specifications
  • Pins: 10
  • Op Temp Range: -40°C to +125°C
  • Length: .550 / 13.97
  • Width: .550 / 13.97
  • Height: .500 / 12.70
  • Primary Inductance: 400µh
  • Turns Ratio: (5.714 : 1) (1.6 : 1)
  • Geometry: EP13
  • Mounting Type: Surface Mount
    • Download Datasheet
