Allied Components

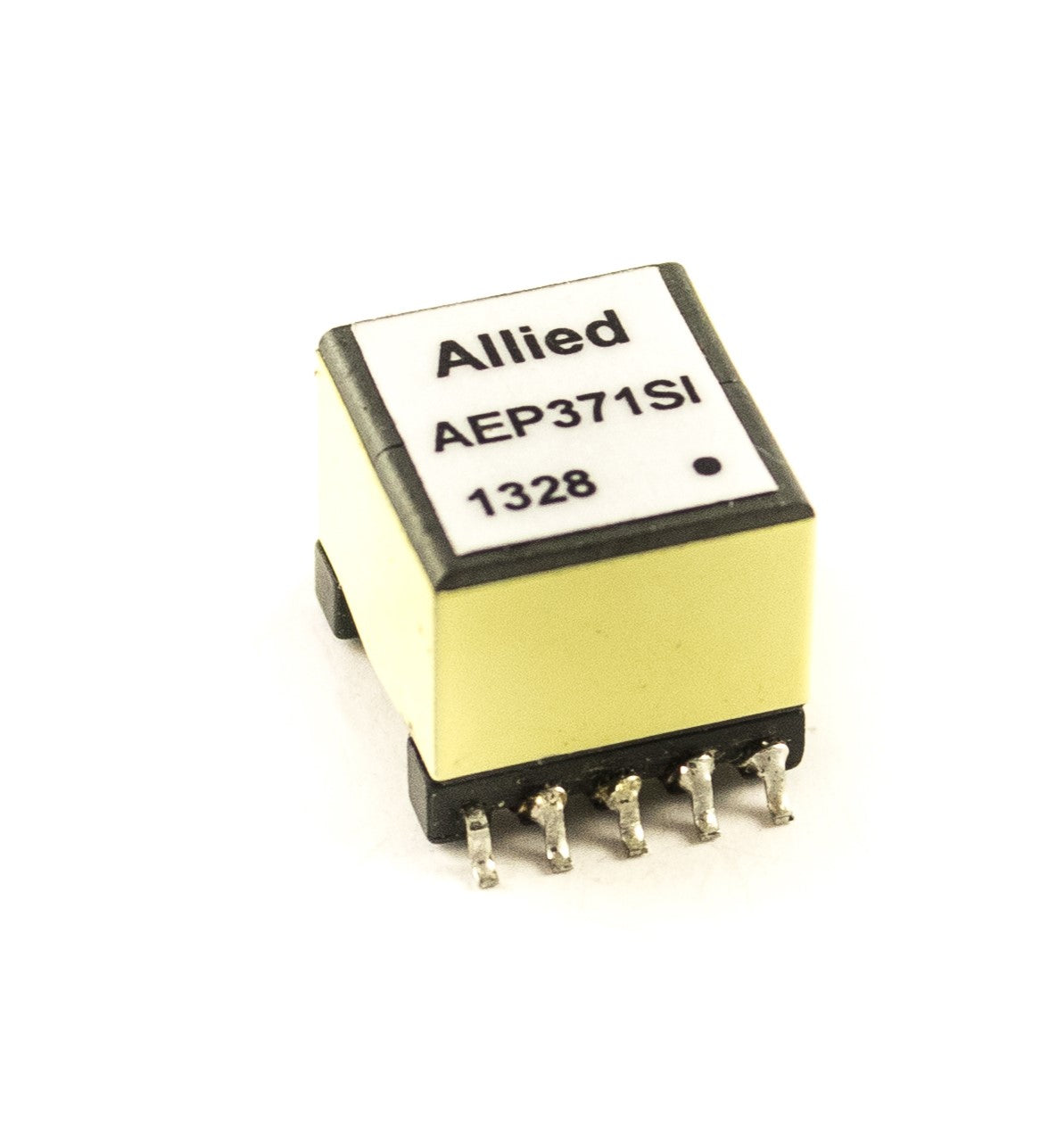

EP13 Design / AEP371SI

$0.00
  • EP13 Core Design
  • 10 Pin Surface Mount Device
  • Flyback Transformer
  • Operating Temperature: -40°C to +85°C
  • Reflow Condition: Maximum reflow temperature is 250ºC/-5ºC time is 20~40 sec.
    (Refer to IPC/JEDECJ-STD-020 standard)
Part Number

Specifications
  • Pins: 10
  • Op Temp Range: -40°C to +85°C
  • Length: 0.695 / 17.650
  • Width: 0.530 / 13.460
  • Geometry: EP13
  • Mounting Type: Surface Mount
  • Primary Inductance: 127µh
  • Turns Ratio: (1 : 0.208), (1 : 0.083)
  • Height: 0.485 / 12.32
    • Download Datasheet
