Allied Components

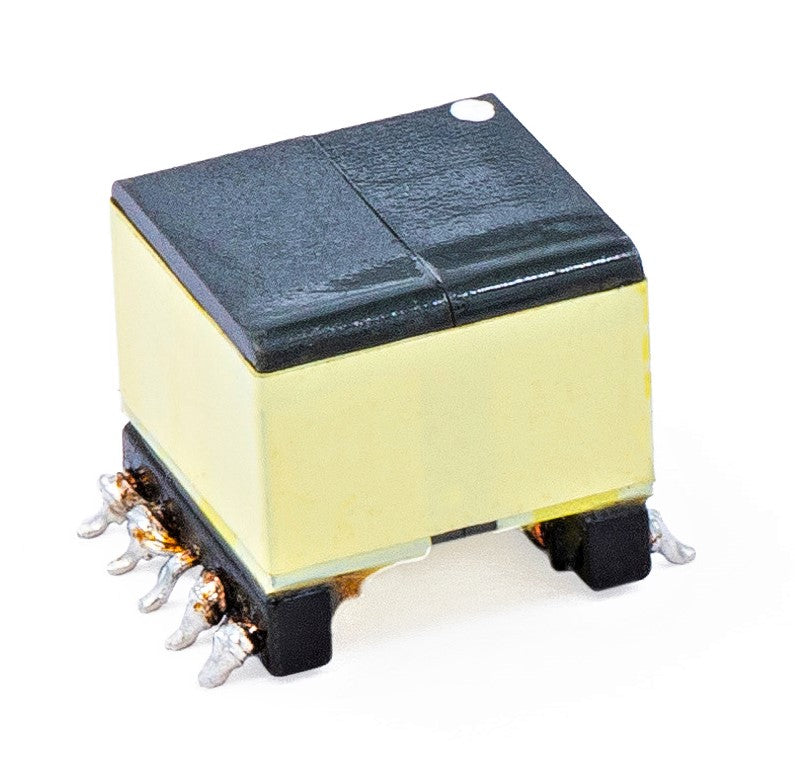

EP13 Design / AEP13-4627

$0.00
  • EP13 Core Design
  • 10 Pin Surface Mount Device
  • 25 Watt PoE Flyback Transformer
  • Operating Temperature: -40°C to +125°C
Part Number

Specifications
  • Pins: 10
  • Op Temp Range: -40°C to +125°C
  • Length: .695 / 17.65
  • Width: .550 / 13.97
  • Height: .485 / 12.32
  • Primary Inductance: 37.5µh
  • Turns Ratio: 1 : 0.15 : 0.15 : 0.6
  • Geometry: EP13
  • Mounting Type: Surface Mount
    • Download Datasheet
