Allied Components

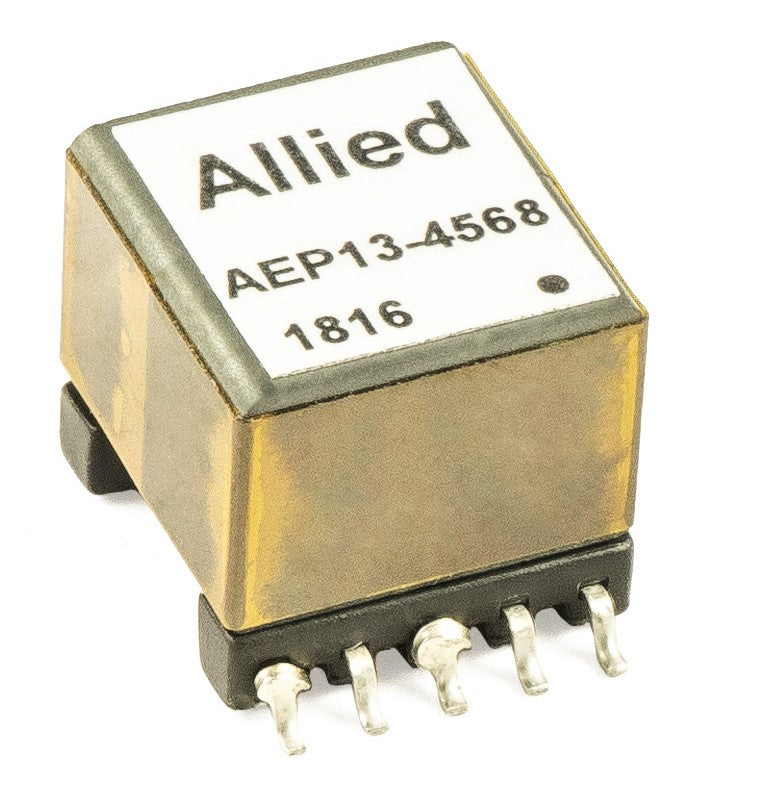

EP13 Design / AEP13-4568

$0.00
  • EP13 Core Design
  • 10 Pin Surface Mount Device
  • Power Transformer
  • Operating Temperature: -40°C to +125°C
  • Reflow Condition: Maximum reflow temperature is 250ºC/-5ºC time is 20~40 sec.
    (Refer to IPC/JEDECJ-STD-020 standard)
Part Number

Specifications
  • Pins: 10
  • Op Temp Range: -40°C to +125°C
  • Length: .695 / 17.65
  • Width: .530 / 13.46
  • Height: .485 / 12.32
  • Primary Inductance: 40µh
  • Turns Ratio: (2 : 1), (2 : 1)
  • Geometry: EP13
  • Mounting Type: Surface Mount
    • Download Datasheet
