Allied Components

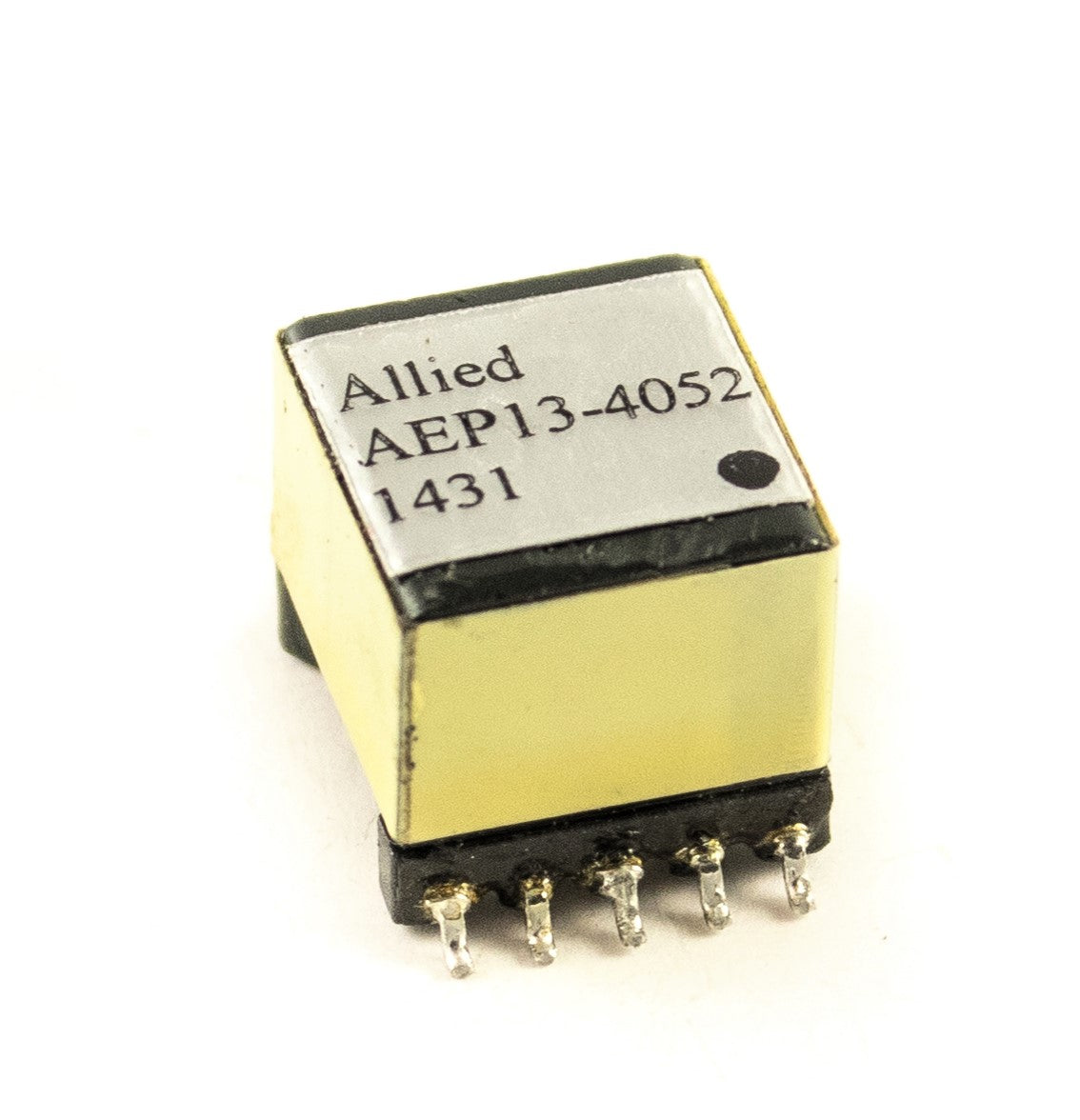

EP13 Design / AEP13-4052

$0.00
  • EP13 Core Design
  • 10 Pin Surface Mount Device
  • Flyback Transformer
  • Operating Temperature: -40°C to +125°C
  • Saturation Current: 2.4A (20% roll of from initial value)
Part Number

Specifications
  • Pins: 10
  • Op Temp Range: -40°C to +125°C
  • Length: 0.699 / 17.755
  • Width: 0.530 / 13.462
  • Height: 0.500 / 12.7
  • Primary Inductance: 100µh
  • Turns Ratio: (4.5 : 1), (3 : 1)
  • Geometry: EP13
  • Mounting Type: Surface Mount
    • Download Datasheet
