Allied Components

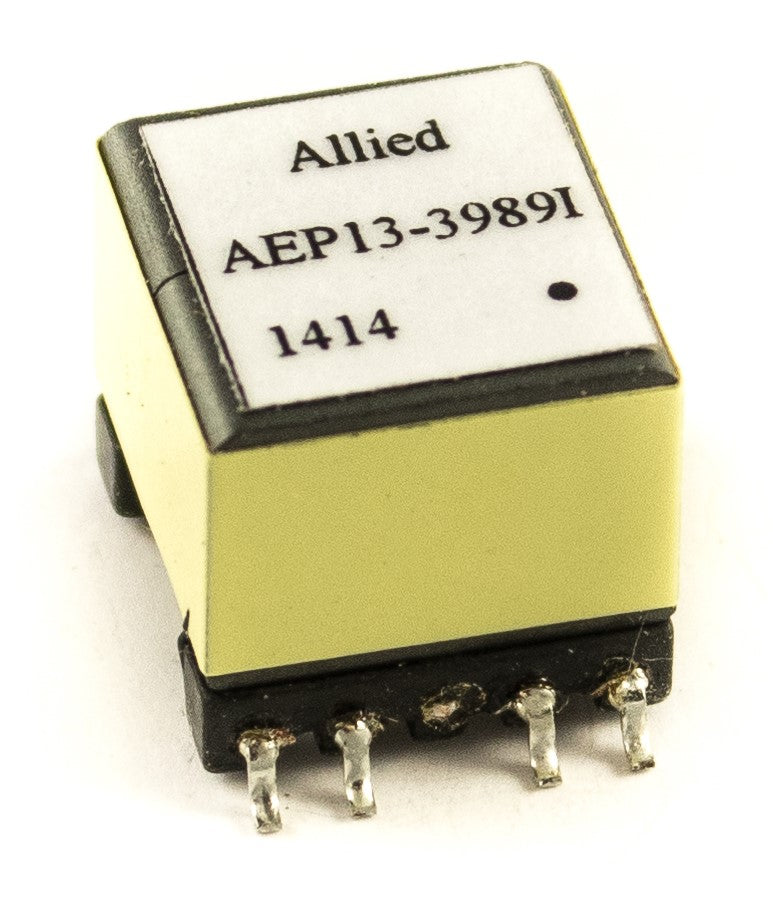

EP13 Design / AEP13-3989I

$0.00
  • EP13 Core Design
  • 10 Pin Surface Mount Device
  • HDSL Transformer
  • Operating Temperature: -40°C to +85°C
  • Reflow Condition: Maximum reflow temperature is 250ºC/-5ºC time is 20~40 sec.
    (Refer to IPC/JEDECJ-STD-020 standard)
Part Number

Specifications
  • Pins: 10
  • Op Temp Range: -40°C to +85°C
  • Length: 0.709 / 18.0
  • Width: 0.551 / 14.0
  • Height: 0.531 / 13.5
  • Primary Inductance: 2.0mh
  • Turns Ratio: 2 : 1
  • Geometry: EP13
  • Mounting Type: Surface Mount
    • Download Datasheet
