Allied Components

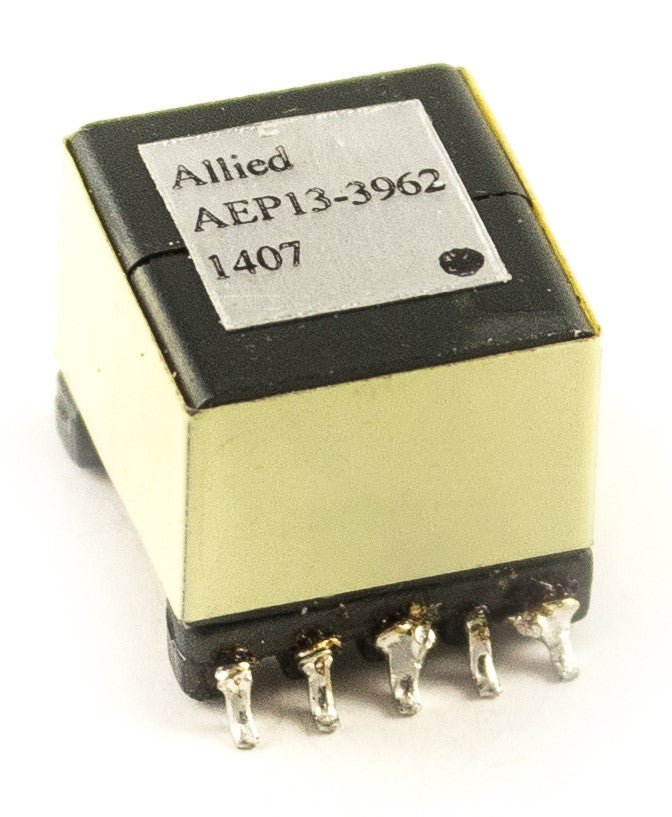

EP13 Design / AEP13-3962

$0.00
  • EP13 Core Design
  • 10 Pin Surface Mount Device
  • Flyback Transformer
  • Operating Temperature: -40°C to +130°C
Part Number

Specifications
  • Pins: 10
  • Op Temp Range: -40°C to +130°C
  • Length: 0.695 / 17.653
  • Width: 0.571 / 14.503
  • Height: 0.551 / 13.995
  • Primary Inductance: 21µh
  • Turns Ratio: 1 : 1 : 1.33 : 0.89
  • Geometry: EP13
  • Mounting Type: Surface Mount
    • Download Datasheet
