Allied Components

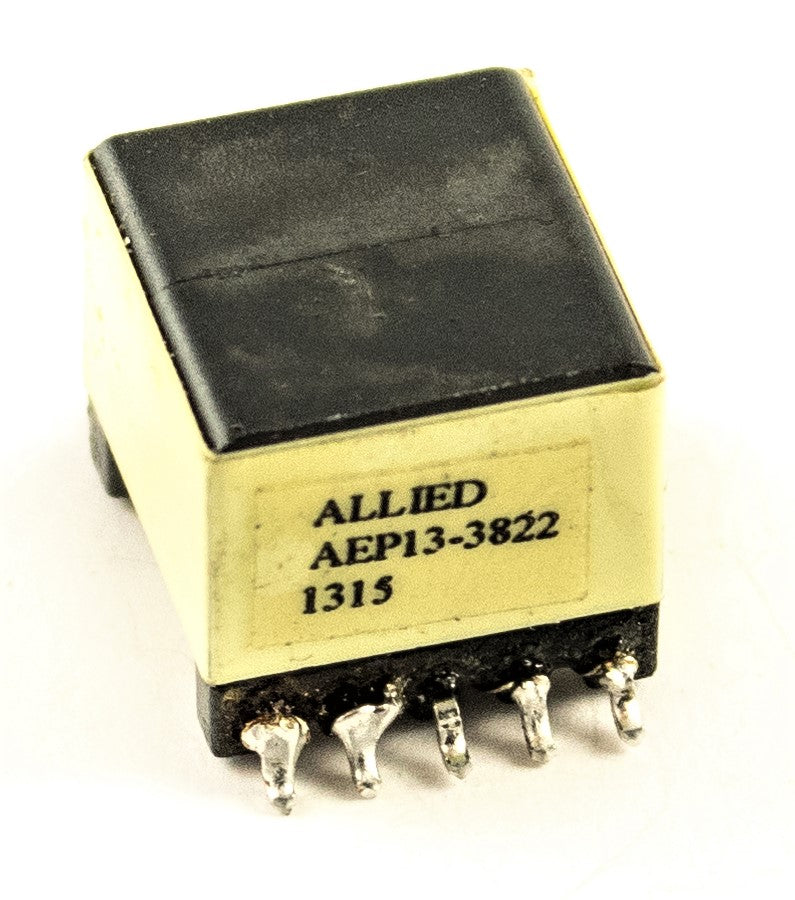

EP13 Design / AEP13-3822

$0.00
  • EP13 Core Design
  • 10 Pin Surface Mount Device
  • 15 Watt Forward Mode Transformer
  • Operating Temperature: -40°C to +85°C
Part Number

Specifications
  • Pins: 10
  • Op Temp Range: -40°C to +85°C
  • Length: 0.699 / 17.75
  • Width: 0.530 / 13.46
  • Height: 0.50 / 12.70
  • Primary Inductance: 705µh
  • Turns Ratio: (1:0.24), (1:0.67)
  • Geometry: EP13
  • Mounting Type: Surface Mount
    • Download Datasheet
