Allied Components

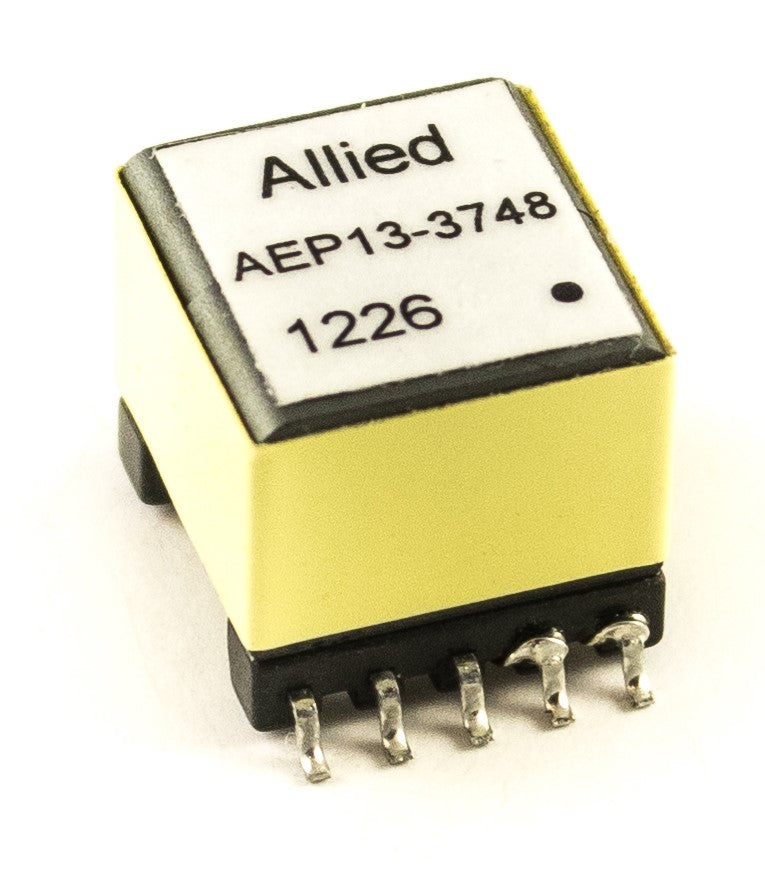

EP13 Design / AEP13-3748

$0.00
  • EP13 Core Design
  • 16 Pin Surface Mount Device
  • VDSL Transformer
  • Operating Temperature: -40°C to +85°C
  • Reflow Condition: Maximum reflow temperature is 250ºC/-5ºC time is 20~40 sec.
    (Refer to IPC/JEDECJ-STD-020 standard)
  • Meets the specifications for supplementary insulation per:
    UL60950-1, CSA60950-1, EN60950-1, IEC60950-1 with working voltage of 250V
Part Number

Specifications
  • Pins: 10
  • Op Temp Range: -40°C to +85°C
  • Length: 0.699 / 17.750
  • Width: 0.530 / 13.460
  • Height: 0.492 / 12.5
  • Primary Inductance: 40µh
  • Turns Ratio: 1 : 2 : 2
  • Geometry: EP13
  • Mounting Type: Surface Mount
    • Download Datasheet
