Allied Components

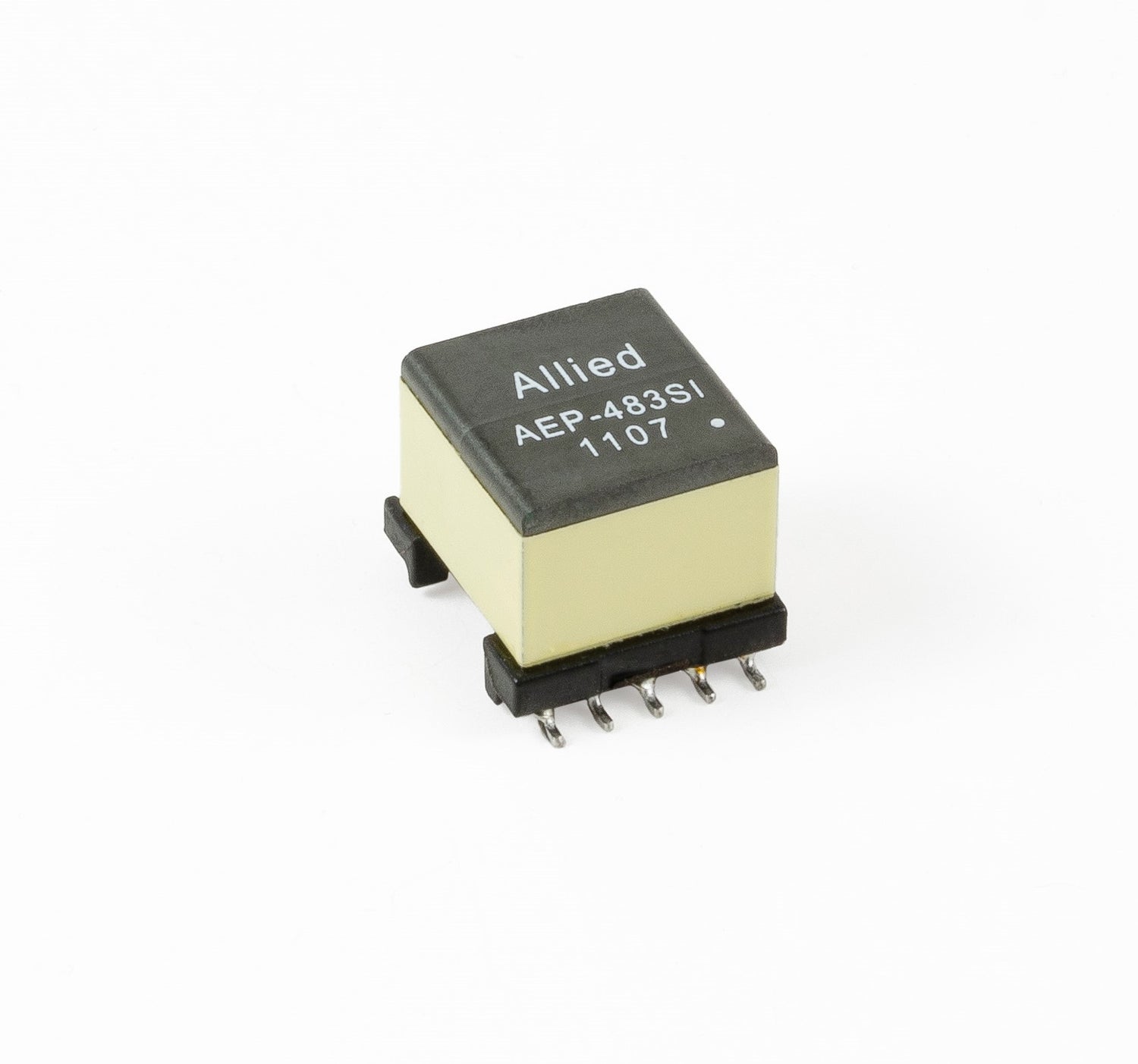

EP13 Design / AEP-483SI

$0.00
  • EP13 Core Design
  • 10 Pin Surface Mount Device
  • PoE Synchronous Flyback Transformer
  • Operating Temperature: -40°C to +85°C
  • Designed to work with LT42691
  • Reflow Condition: Maximum reflow temperature is 250ºC/-5ºC time is 20~40 sec.
    (Refer to IPC/JEDECJ-STD-020 standard)
Part Number

Specifications
  • Pins: 10
  • Op Temp Range: -40°C to +85°C
  • Length: 0.699 / 17.750
  • Width: 0.559 / 14.2
  • Height: 0.5 / 12.7
  • Primary Inductance: 37µh
  • Turns Ratio: 1 : 1.8 : 0.9
  • Geometry: EP13
  • Mounting Type: Surface Mount
    • Download Datasheet
