Allied Components

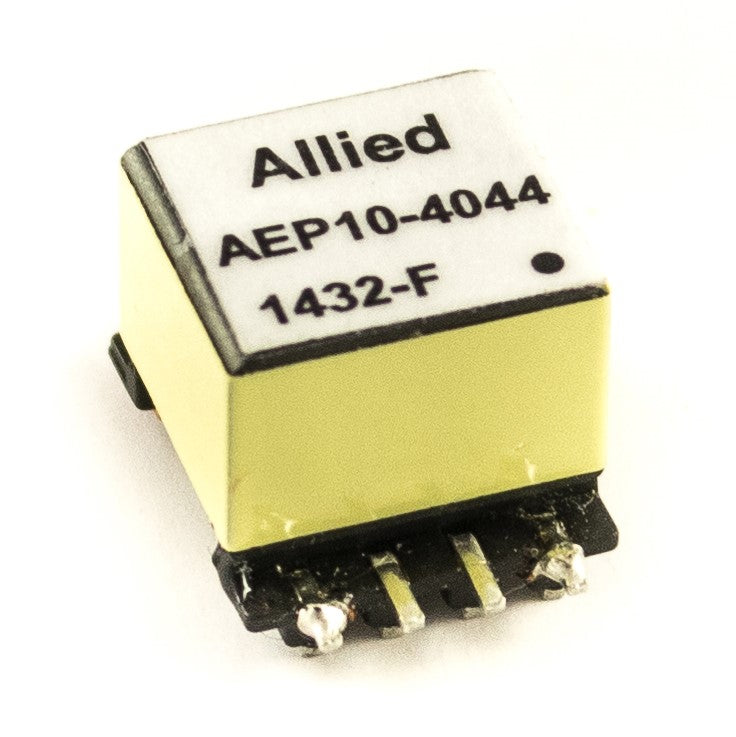

EP10 Design / AEP10-4044

$0.00
  • EP10 Core Design
  • 8 Pin Surface Mount Device
  • Power Transformer
  • Compact Foot Print
  • Operating Temperature: -40°C to +125°C
  • Reflow Condition: Maximum reflow temperature is 250ºC/-5ºC time is 20~40 sec.
    (Refer to IPC/JEDECJ-STD-020 standard)
Part Number

Specifications
  • Pins: 8
  • Op Temp Range: -40°C to +125°C
  • Length: 0.520 / 13.2
  • Width: 0.472 / 12.0
  • Height: 0.453 / 11.5
  • Primary Inductance: 28µh
  • Turns Ratio: 2:1:1
  • Geometry: EP10
  • Mounting Type: Surface Mount
    • Download Datasheet
