Allied Components

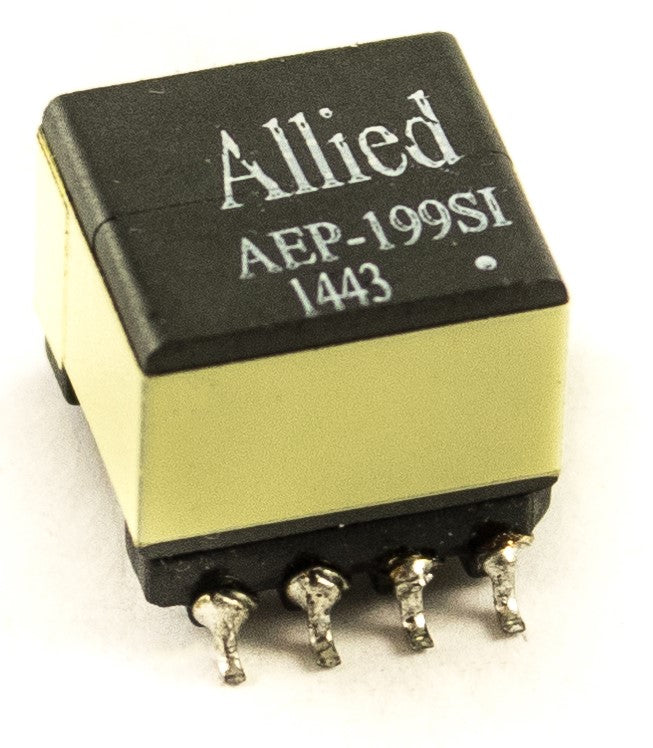

EP10 Design / AEP-199SI

$0.00
  • EP10 Core Design
  • 8 Pin Surface Mount Device
  • Power Transformer
  • Operating Temperature: -40°C to +85°C
  • Reflow Condition: Maximum reflow temperature is 250ºC/-5ºC time is 20~40 sec.
    (Refer to IPC/JEDECJ-STD-020 standard)
Part Number

Specifications
  • Pins: 8
  • Op Temp Range: -40°C to +85°C
  • Length: 0.600 / 15.24
  • Width: 0.516 / 13.10
  • Height: 0.451 / 11.45
  • Primary Inductance: 20.4µh
  • Turns Ratio: 1 : 0.44 : 0.39
  • Geometry: EP10
  • Mounting Type: Surface Mount
    • Download Datasheet
