Allied Components

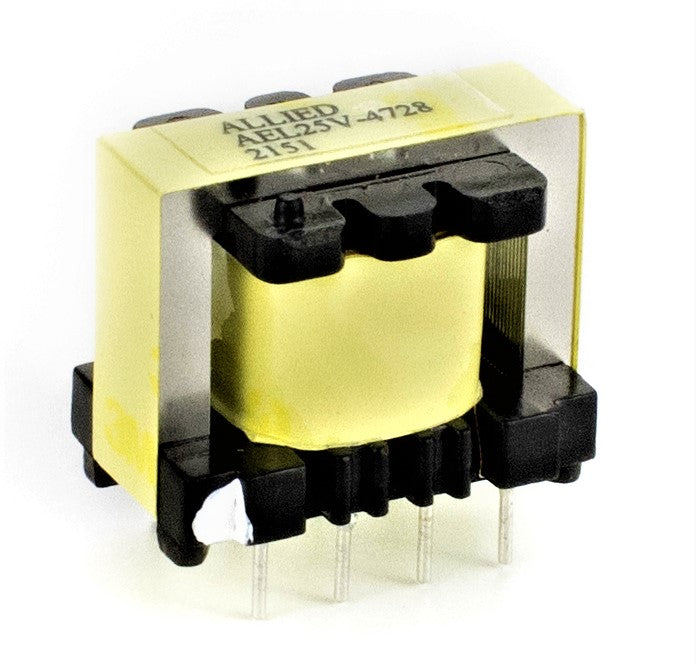

EL25 Vertical Mount / AEL25V-4728

$0.00
  • EL25 Core Design
  • Wire Wound Through Hole Design
  • Operating Temperature Range: -20°C to +85°C
Part Number

Specifications
  • Pins: 8
  • Op Temp Range: -20°C to +85°C
  • Length: 1.044 / 26.5
  • Width: .748 / 19.0
  • Height: .906 / 23.0
  • Primary Inductance: 15H
  • Primary Impedance: 74KΩ
  • Turns Ratio: 10 : 1
  • Geometry: EL25
  • Mounting Type: Through-Hole
    • Download Datasheet
