Allied Components

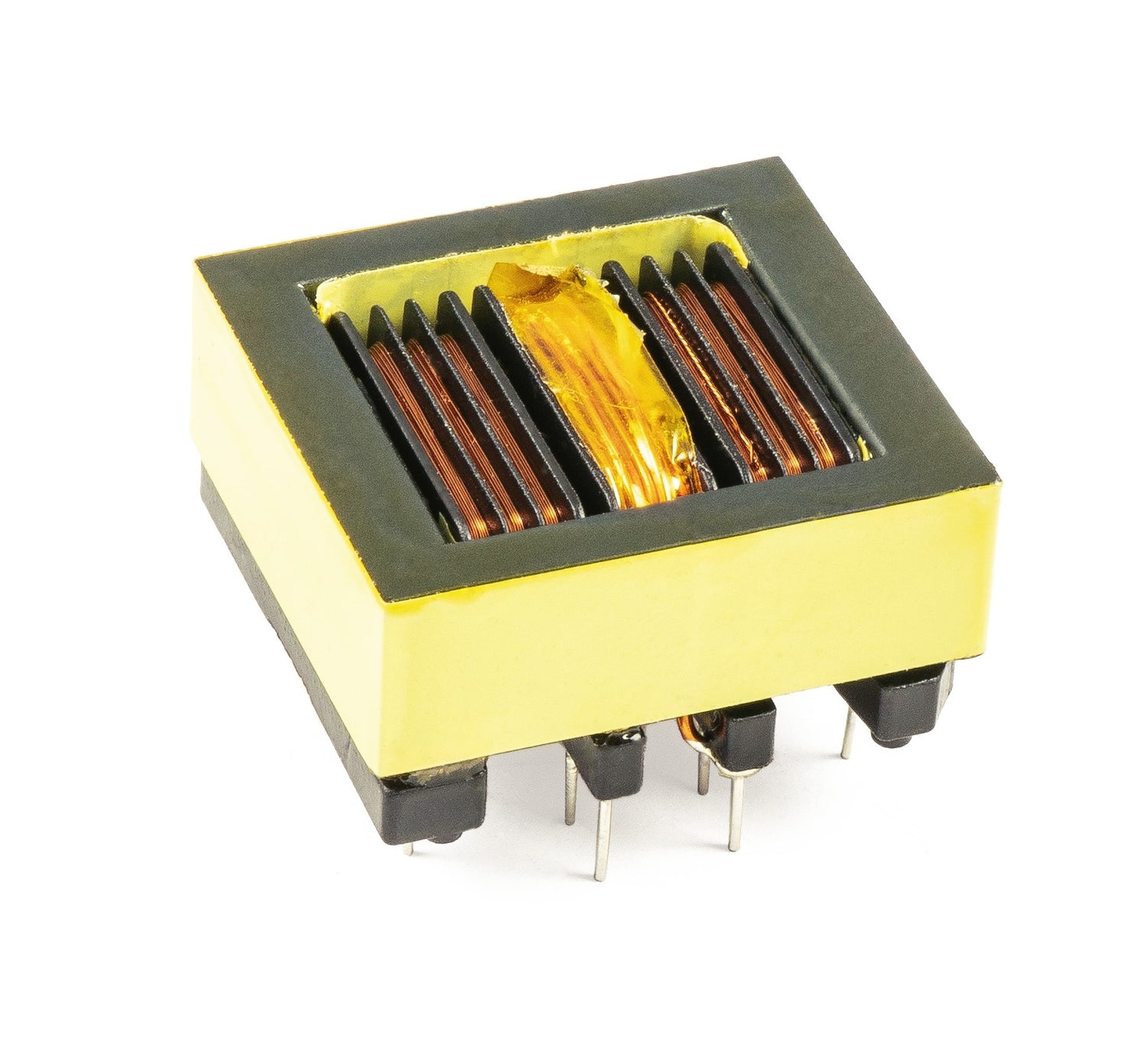

EFD25 Horizontal Mount / AEFD25-4615

$0.00
  • EFD25 Core Design
  • Through Hole, Horizontal Mount
  • For CCFL Inverter Application
  • HiPot: 1500VAC
Part Number

Specifications
  • Pins: 12
  • Op Temp Range: -40°C to +130°C
  • Length: 1.122 / 28.5
  • Width: 1.000 / 25.4
  • Height: .591 / 15.0
  • Primary Inductance: 19µH
  • Turns Ratio: 1 : 1 : .015 : .015 : .006
  • Geometry: EFD25
  • Mounting Type: Through-Hole
    • Download Datasheet
