Allied Components

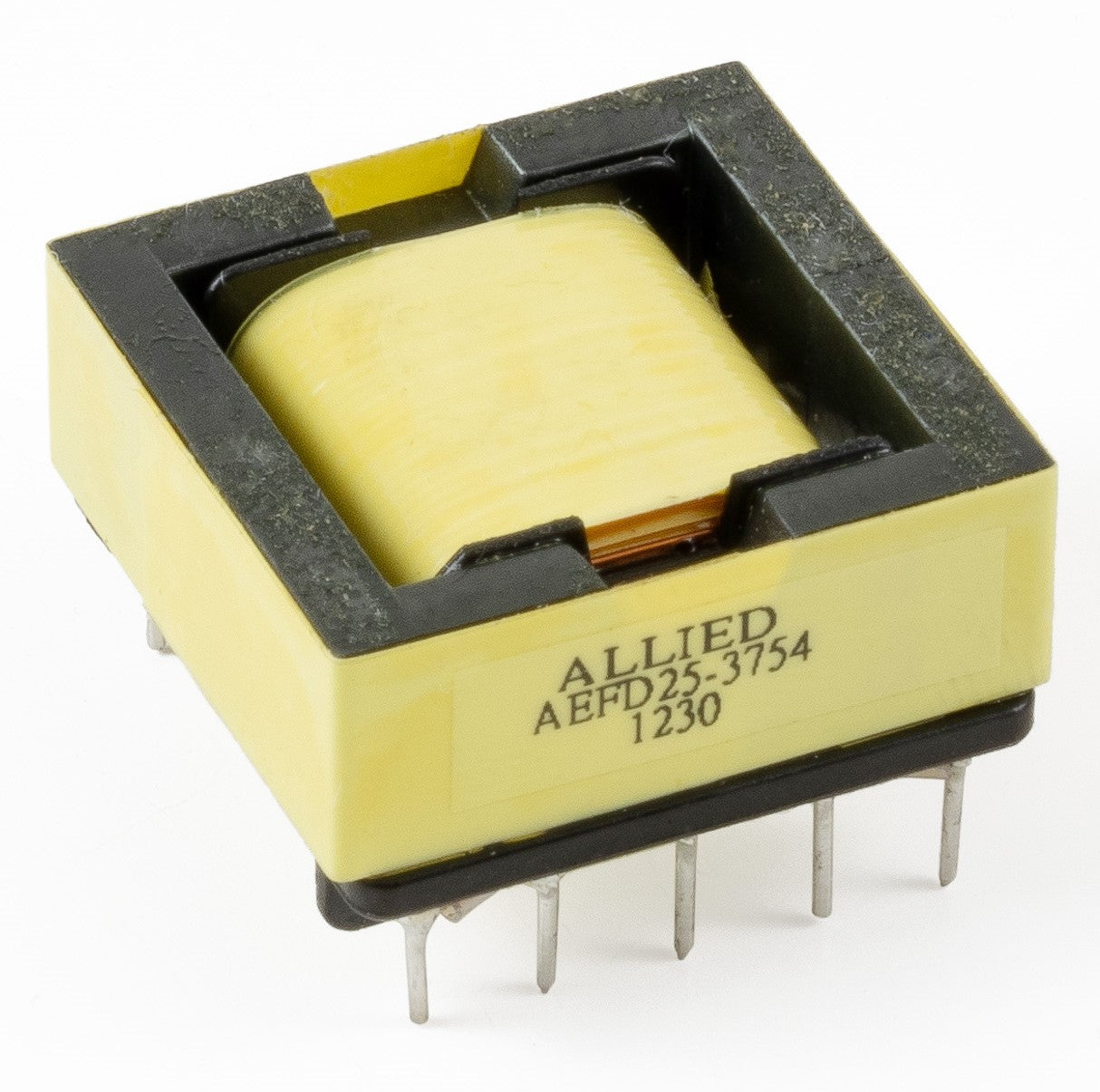

EFD25 Horizontal Mount / AEFD25-3754

$0.00
  • UL Class B 130 Insulation System File # E349541
  • Designed for use in Lighting Applications
  • Other winding confirgurations available
  • EFD20 Through Hole Design
  • Horizontal Mount
Part Number

Specifications
  • Pins: 10
  • Op Temp Range: -40°C to +85°C
  • Length: 1.083 / 27.5
  • Width: 1.083 / 27.5
  • Height: 0.610 / 15.5
  • Primary Inductance: 1.752µH
  • Turns Ratio: 1 : 0.23 : 0.15
  • Geometry: EFD25
  • Mounting Type: Through-Hole
    • Download Datasheet
