Allied Components

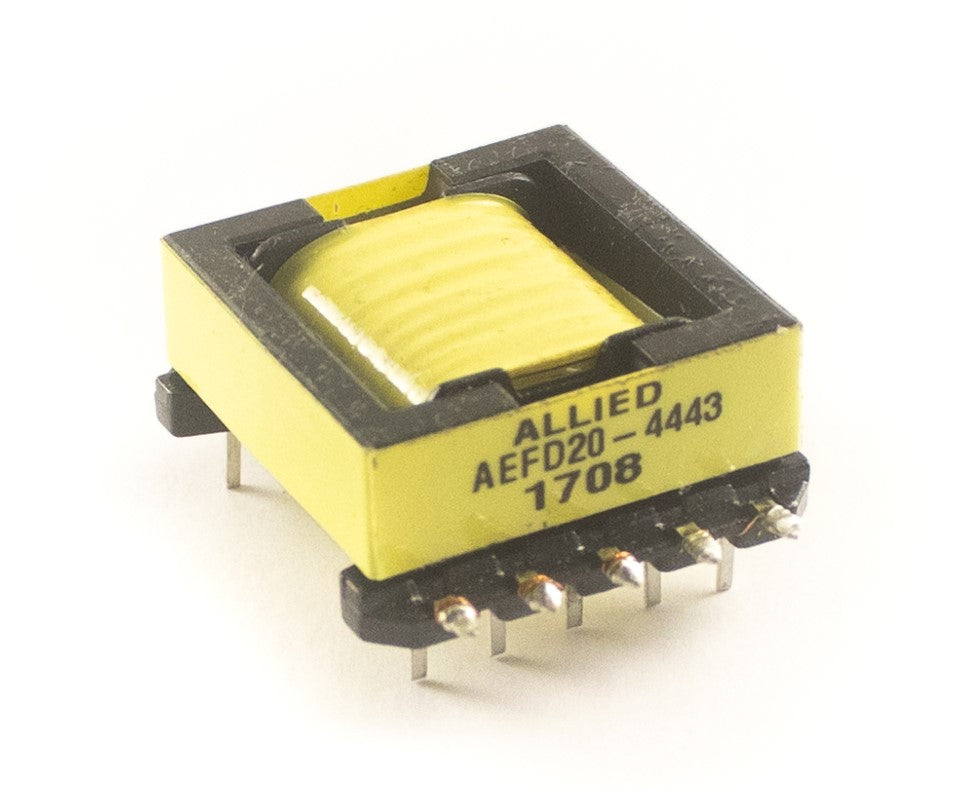

EFD20 Horizontal Mount Through Hole / AEFD20-4443

$0.00
  • EFD20 Core Through Hole Design
  • 12W-14W Transformer
  • Operating Ambient Temperature Range: -10ºC to +85ºC
  • HiPot to 3600VAC
Part Number

Specifications
  • Pins: 10
  • Op Temp Range: -10°C to +85°C
  • Length: 0.984 / 25.0
  • Width: 0.906 / 23.0
  • Height: 0.394 / 10.0
  • Primary Inductance: 650µH
  • Turns Ratio: 1 : 0.2 : 0.33 : 0.12
  • Geometry: EFD20
  • Mounting Type: Through-Hole
    • Download Datasheet
