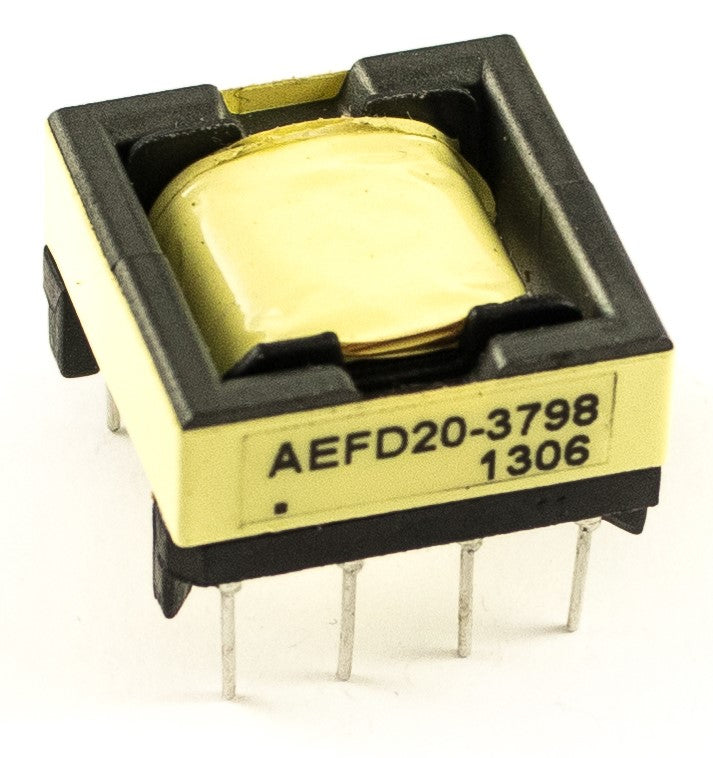

EFD20 Horizontal Mount Through Hole / AEFD20-3798

$0.00
  • EFD20 Core Design
  • Operating Temperature Range: -40ºC to +130ºC
  • Up to 120 Watt Power Rating
  • Wave Solder Condition: Max Temperature is 260ºC ±130ºC, 5-6sec
Part Number

Specifications
  • Pins: 8
  • Op Temp Range: -40°C to +130°C
  • Length: 0.846 / 21.488
  • Width: 0.826 / 20.980
  • Height: 0.512 / 13.005
  • Primary Inductance: 110µH
  • Turns Ratio: 2 : 2 : 1
  • Geometry: EFD20
  • Mounting Type: Through-Hole
    • Download Datasheet
