Allied Components

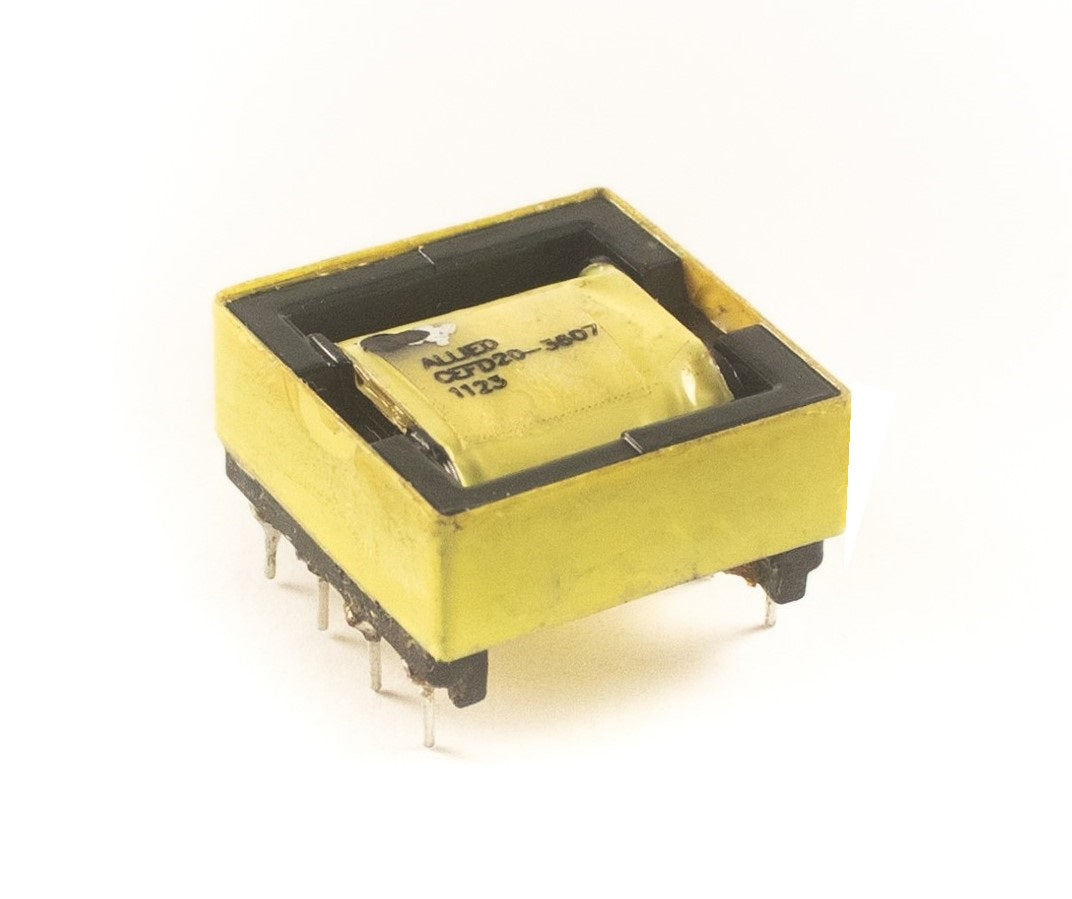

EFD20 Horizontal Mount Through Hole / AEFD20-3607

$0.00
  • EFD20 Through Hole Design
  • Horizontal Mount
  • HiPot: 500VAC
Part Number

Specifications
  • Pins: 8
  • Op Temp Range: -20°C to +85°C
  • Length: 0.830 / 21.082
  • Width: 0.830 / 21.082
  • Height: 0.445 / 11.303
  • Primary Inductance: 500nH
  • Turns Ratio: 1 : 1 : 1
  • Geometry: EFD20
  • Mounting Type: Through-Hole
    • Download Datasheet
