Allied Components

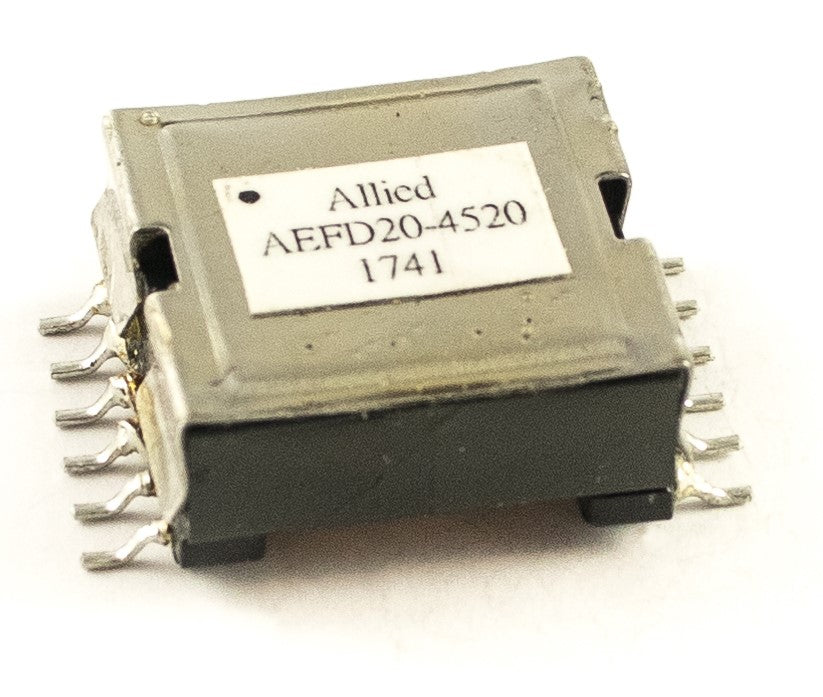

EFD20 Horizontal Mount SMD / AEFD20-4520

$0.00
  • EFD20 Core SMD Package
  • Operating Ambient Temperature Range: -40ºC to +125ºC
  • 1500VAC Hi Pot
Part Number

Specifications
  • Pins: 12
  • Op Temp Range: -40°C to +125°C
  • Length: 1.170 / 29.718
  • Width: 0.910 / 23.114
  • Height: 0.450 / 11.430
  • Primary Inductance: 9µH
  • Turns Ratio: (1.12 : 1), (1 : 1)
  • Geometry: EFD20
  • Mounting Type: Surface Mount
    • Download Datasheet
