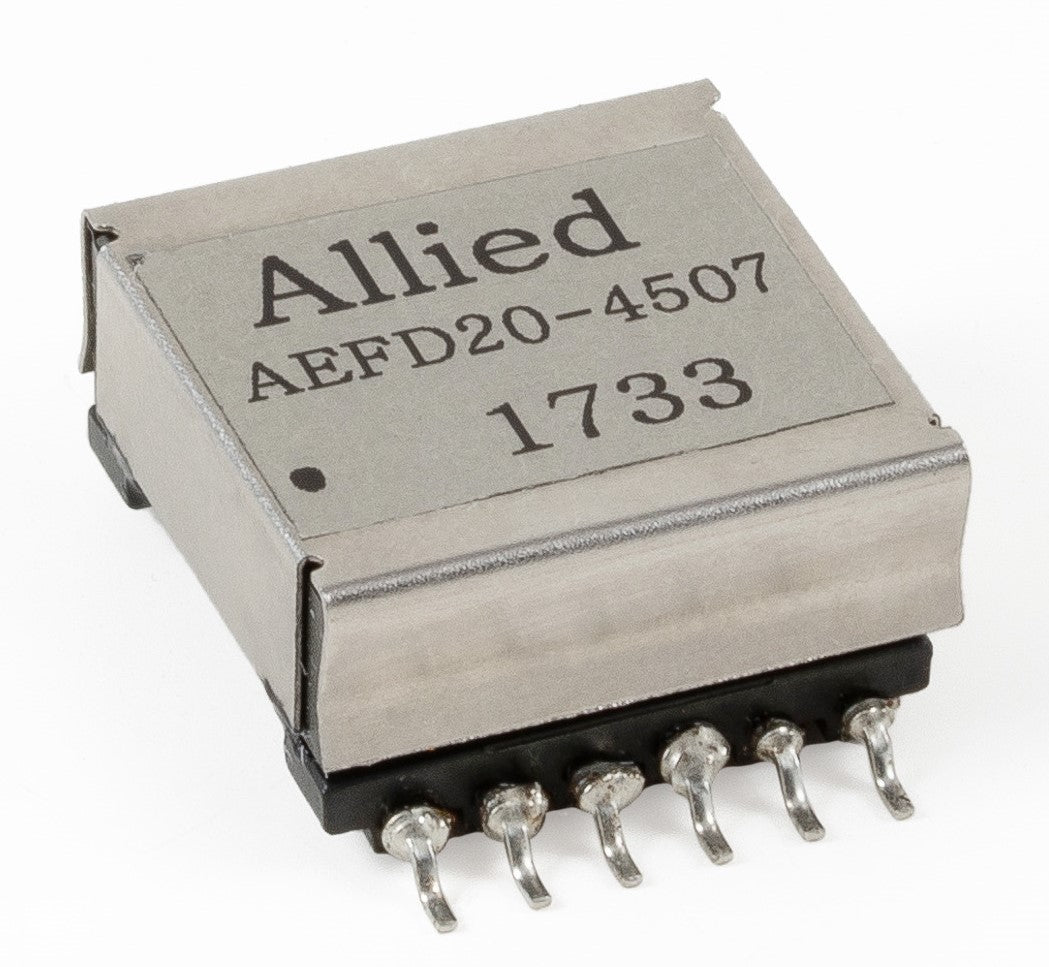

EFD20 Horizontal Mount SMD / AEFD20-4507

$0.00
  • EFD20 Core SMD Package
  • FlyBack Topology
  • Operating Ambient Temperature Range: -40ºC to +125ºC
  • 1500VAC Hi Pot
  • Reflow Condition: Tp is greater than 260ºC for 5 Seconds (Refer to IPC/JEDEC J-STD-020 standard)
Part Number

Specifications
  • Pins: 12
  • Op Temp Range: -40°C to +125°C
  • Length: 1.161 / 29.5
  • Width: 0.866 / 22.0
  • Height: 0.472 / 12.0
  • Primary Inductance: 50µH
  • Turns Ratio: 1 : 0.12 : 0.41
  • Geometry: EFD20
  • Mounting Type: Surface Mount
    • Download Datasheet
