Allied Components

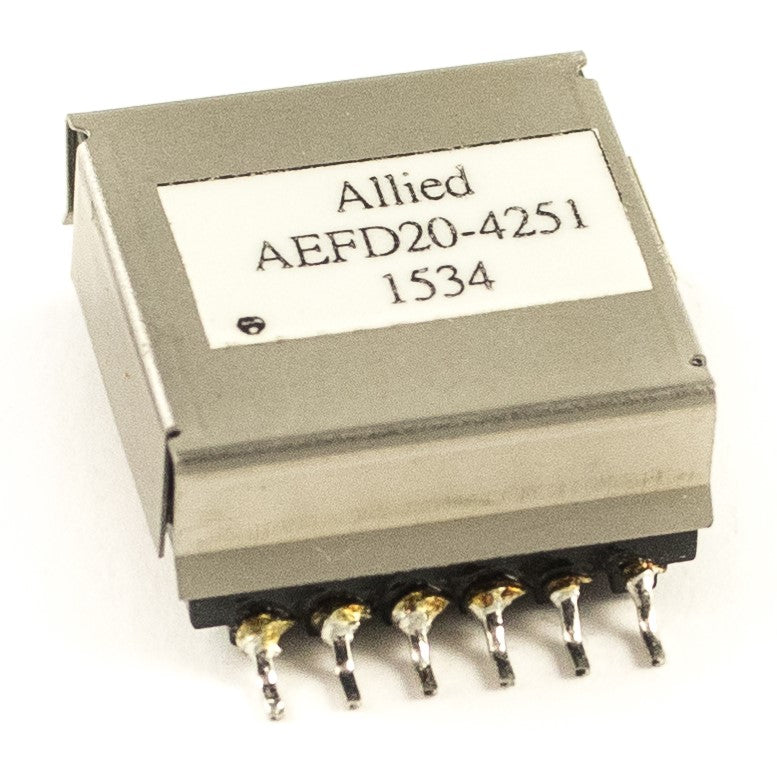

EFD20 Horizontal Mount SMD / AEFD20-4251

$0.00
  • EFD20 Core Design
  • Wire Wound SMD Low Profile Design
  • Operating Temperature range: -40ºC to +130ºC
Part Number

Specifications
  • Pins: 12
  • Op Temp Range: -40°C to +130°C
  • Length: 1.150 / 29.210
  • Width: 0.860 / 21.840
  • Height: 0.450 / 11.430
  • Primary Inductance: 4.5µH
  • Turns Ratio: (1 : 1), (0.857 : 1), (3 : 1)
  • Geometry: EFD20
  • Mounting Type: Surface Mount
    • Download Datasheet
