Allied Components

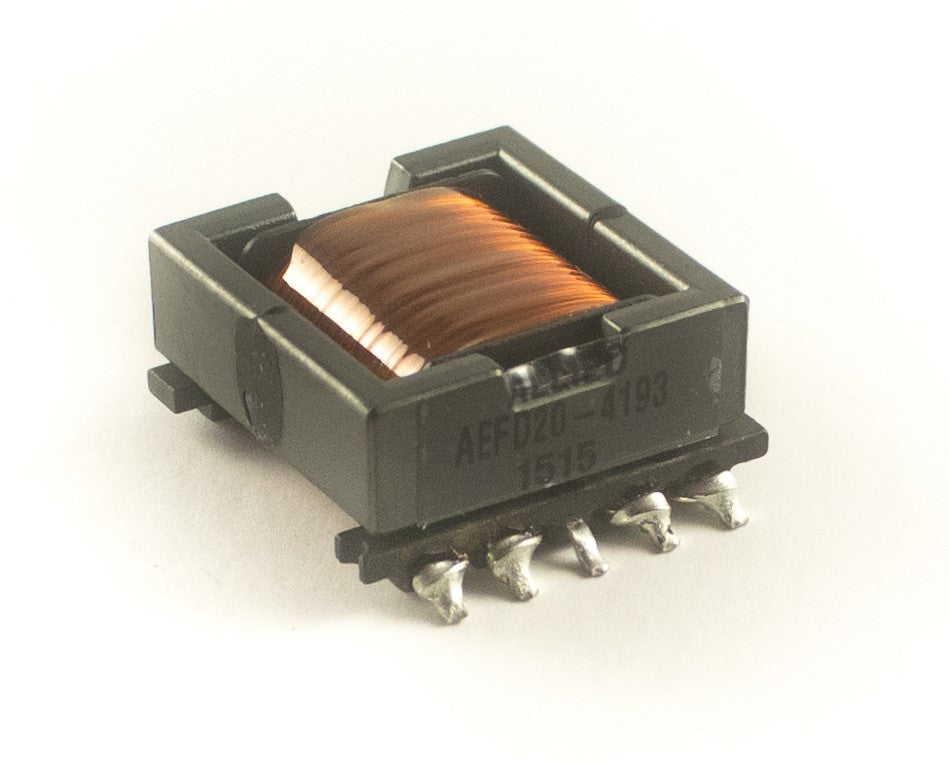

EFD20 Horizontal Mount SMD / AEFD20-4193

$0.00
  • EFD20 Low Profile Power Transformer Design
  • RoHS Compliant
  • Operating Temperature range: -25ºC to +125ºC
Part Number

Specifications
  • Pins: 10
  • Op Temp Range: -25°C to +125°C
  • Length: 1.043 / 26.5
  • Width: 0.886 / 22.5
  • Height: 0.571 / 14.5
  • Primary Inductance: 8.2µH
  • Turns Ratio: 1 : 5.3 : 1.5
  • Geometry: EFD20
  • Mounting Type: Surface Mount
    • Download Datasheet
