Allied Components

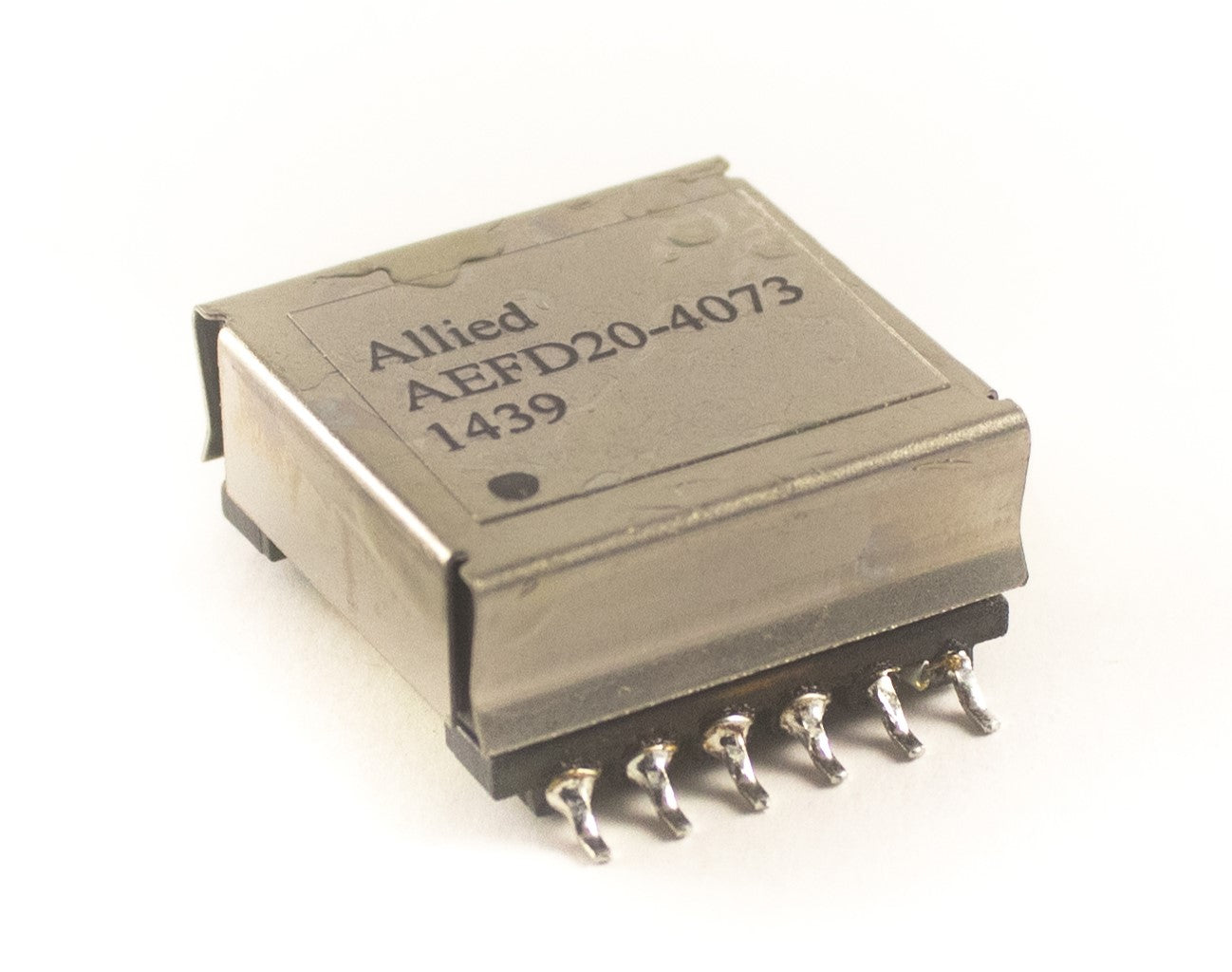

EFD20 Horizontal Mount SMD / AEFD20-4073

$0.00
  • EFD20 SMD Design
  • For 30 Watt PoE+ Applications
  • Flyback Topology
  • Operating Temperature: -40°C to +85°C
Part Number

Specifications
  • Pins: 12
  • Op Temp Range: -40°C to +85°C
  • Length: 1.150 / 29.210
  • Width: 0.860 / 21.844
  • Height: 0.450 / 11.430
  • Primary Inductance: 4.5µH
  • Turns Ratio: 1 : 1 : 0.167 : 0.333 : 0.333
  • Geometry: EFD20
  • Mounting Type: Surface Mount
    • Download Datasheet
