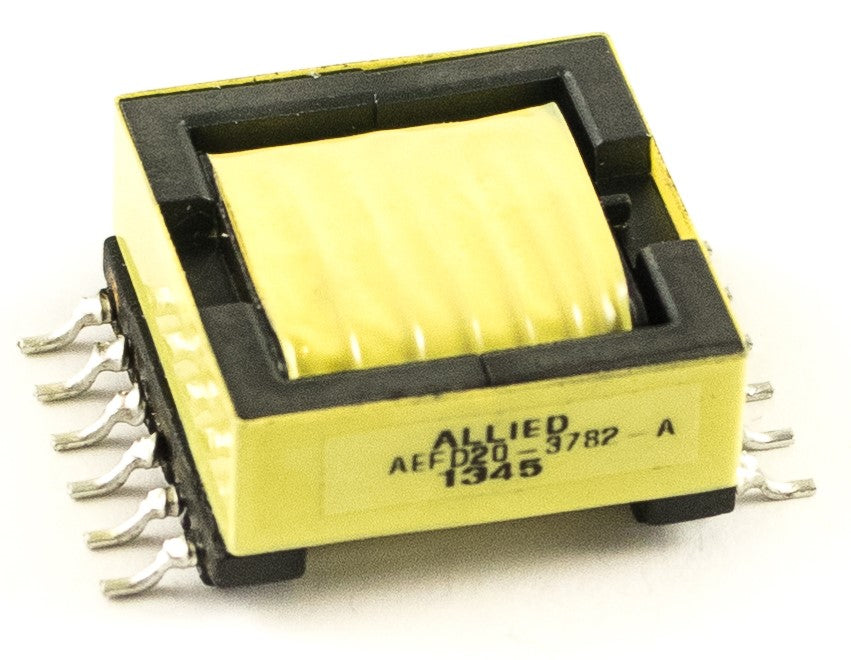

EFD20 Horizontal Mount SMD / AEFD20-3782-A

$0.00
  • EFD20 Core Design
  • 12 Pin SMD
  • Flyback Topology
  • Power Rating: 30 watts
  • Operating Frequency: 250Khz
  • Output: 16.5V, 1.82A
Part Number

Specifications
  • Pins: 12
  • Op Temp Range: -40°C to +85°C
  • Length: 1.128 / 28.650
  • Width: 0.866 / 22.0
  • Height: 0.453 / 11.5
  • Primary Inductance: 40µH
  • Turns Ratio: 1 : 0.16 : 0.25 : 0.58 : 0.58 : 0.58
  • Geometry: EFD20
  • Mounting Type: Surface Mount
    • Download Datasheet
