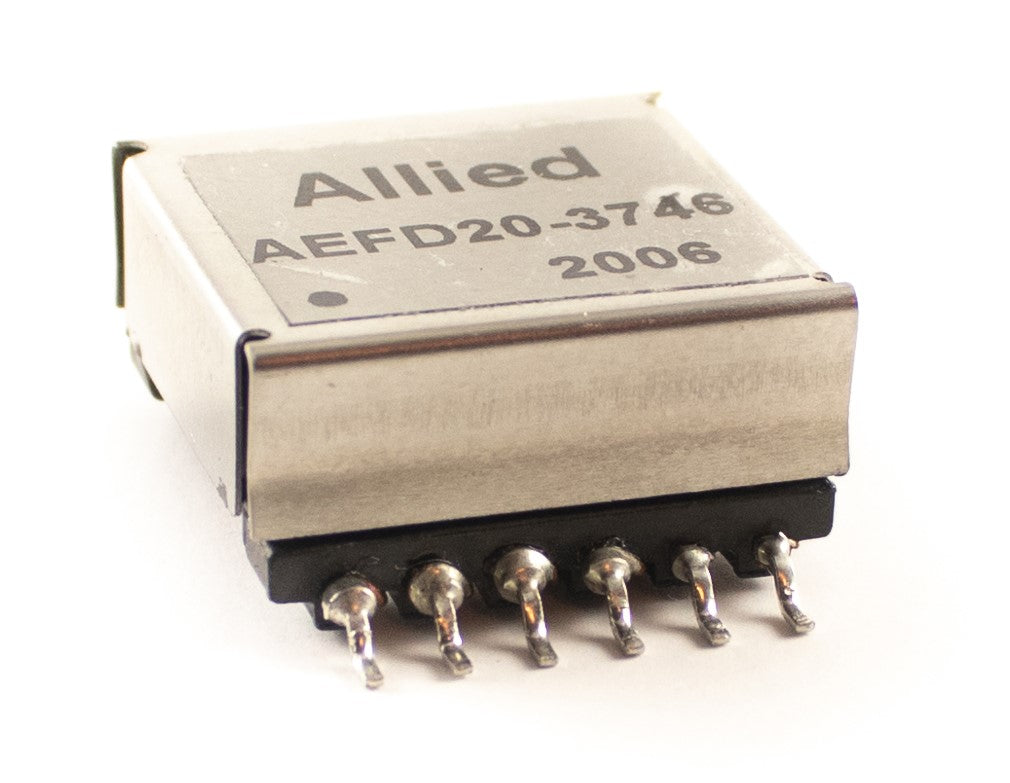

EFD20 Horizontal Mount SMD / AEFD20-3746

$0.00
  • EFD20 Core Design
  • 12 Pin SMD
  • Flyback Topology
  • Operating Temperature range: -40ºC to +130ºC
  • Maximum reflow temperature: 250ºC/-5ºC for 20-40 seconds (Refer to IPC/JEDEC J-STD-02C Standard)
Part Number

Specifications
  • Pins: 12
  • Op Temp Range: -40°C to +130°C
  • Length: 1.150 / 29.210
  • Width: 0.860 / 21.840
  • Height: 0.472 / 12.0
  • Primary Inductance: 20.5µH
  • Turns Ratio: 1 : 0.375 : 0.4375
  • Geometry: EFD20
  • Mounting Type: Surface Mount
    • Download Datasheet
