Allied Components

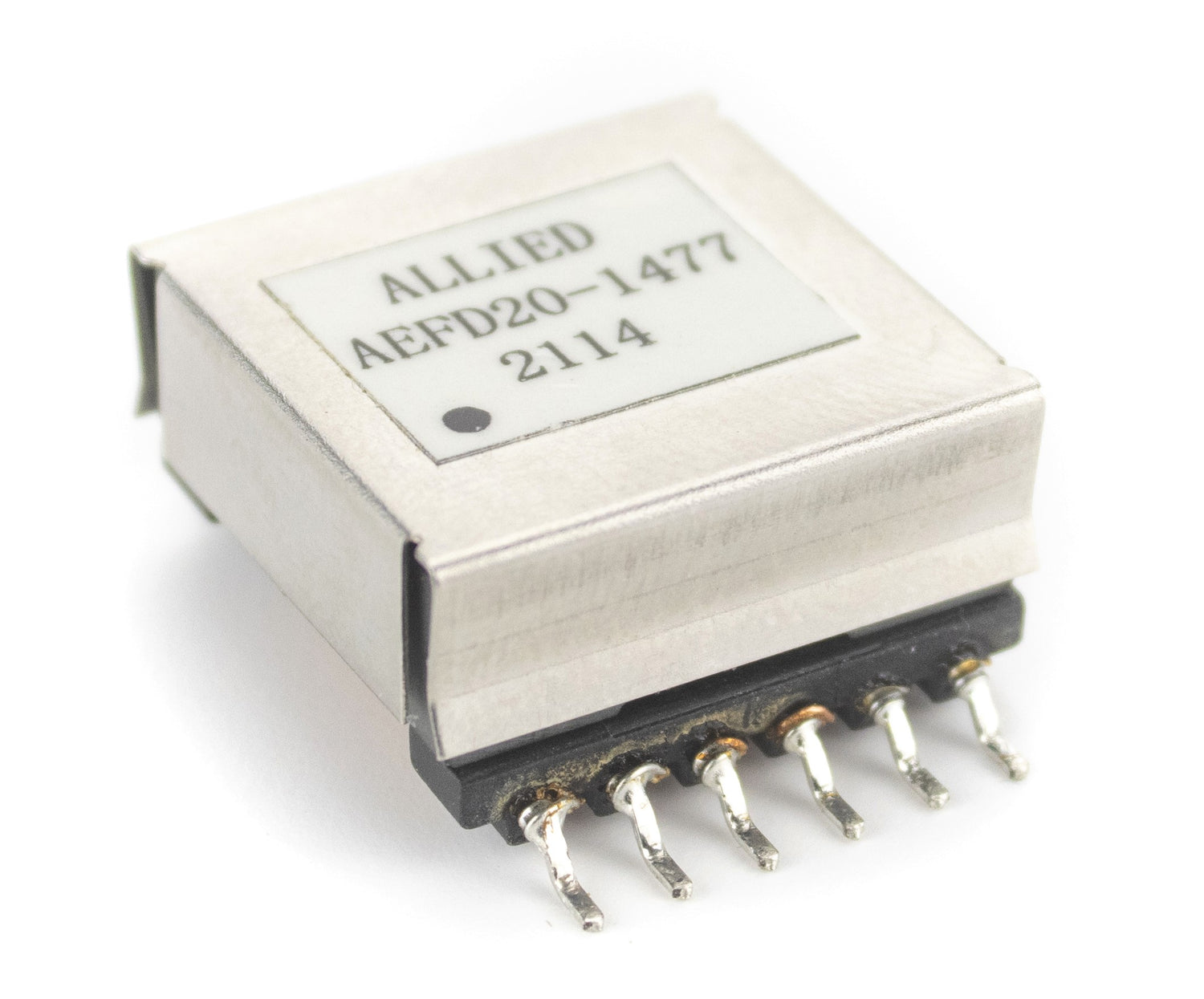

EFD20 Horizontal Mount SMD / AEFD20-1477

$0.00
  • EFD20 Core Design
  • Wire Wound SMD Low Profile Design
  • Operating Temperature Range: -20°C to +125°C
Part Number

Specifications
  • Pins: 12
  • Op Temp Range: -20°C to +125°C
  • Length: .866 / 22.0
  • Width: .866 / 22.0
  • Height: .457 / 11.6
  • Primary Inductance: 38.3µH
  • Turns Ratio: 2 : 1 : 1
  • Geometry: EFD20
  • Mounting Type: Surface Mount
    • Download Datasheet
