Allied Components

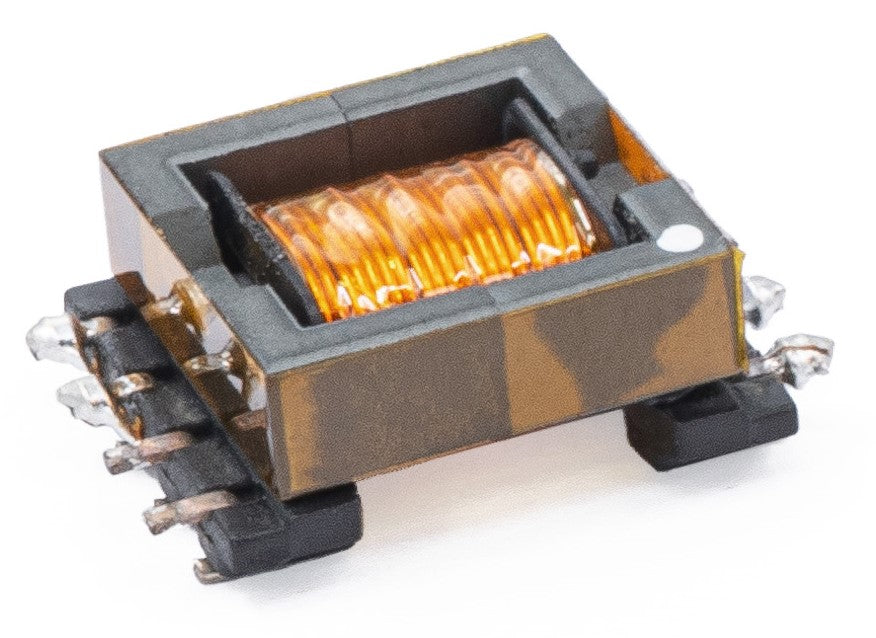

EFD15 Horizontal Mount / AEFD15-4603

$0.00
  • EFD15 SMD Package
  • Other Winding configurations available
  • Operating Temperature range: -20ºC to +125ºC
Part Number

Specifications
  • Pins: 8
  • Op Temp Range: -20°C to +125°C
  • Length: .972 / 24.7
  • Width: .689 / 17.5
  • Height: .356 / 9.0
  • Primary Inductance: 10µH
  • Turns Ratio: 1 : 3.8
  • Geometry: EFD15
  • Mounting Type: Surface Mount
    • Download Datasheet
