Allied Components

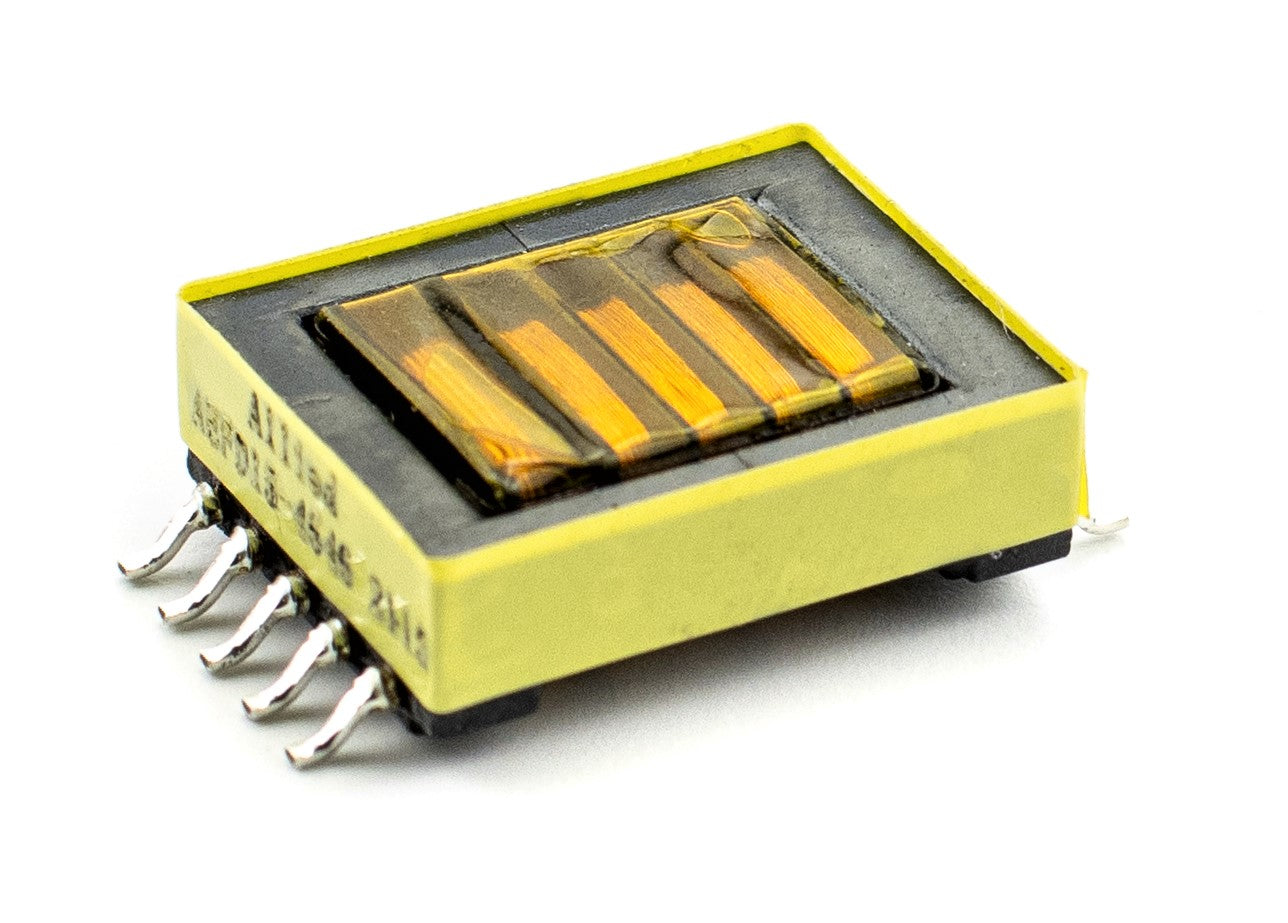

EFD15 Horizontal Mount / AEFD15-4546

$0.00
  • EFD15 Core SMD Package
  • Operating Temperature Range: -40ºC to +85ºC
  • 2000VAC Hi Pot
Part Number

Specifications
  • Pins: 10
  • Op Temp Range: -40°C to +85°C
  • Length: .827 / 21.0
  • Width: .650 / 16.5
  • Height: .287 / 7.3
  • Primary Inductance: 27µH
  • Turns Ratio: 1 : .012 : .002
  • Geometry: EFD15
  • Mounting Type: Surface Mount
    • Download Datasheet
