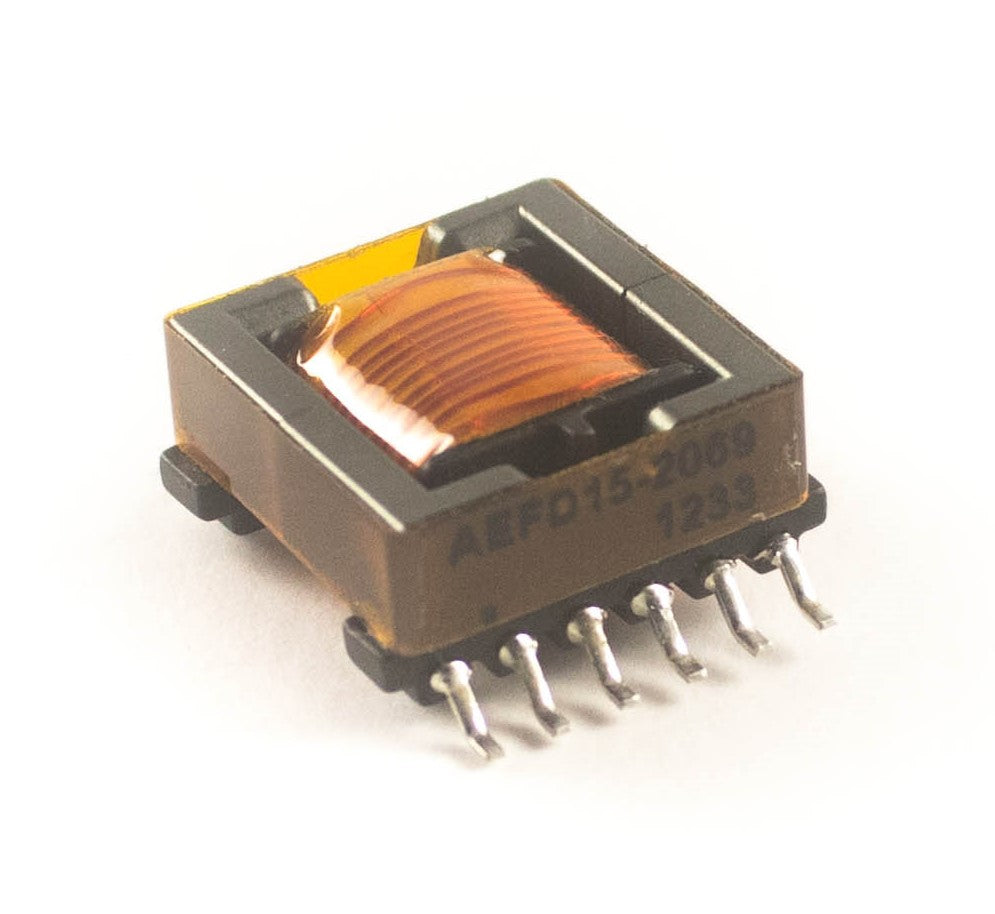

EFD15 Horizontal Mount / AEFD15-2069

$0.00
  • EFD15 SMD Package
  • Other Winding configurations available
  • Operating Temperature range: -40ºC to +130ºC
  • Maximum reflow temperature: 250ºC/-5ºC for 20-40 seconds (Refer to IPC/JEDEC J-STD-020C Standard)
Part Number

Specifications
  • Pins: 12
  • Op Temp Range: -40°C to +130°C
  • Length: 0.857 / 22.230
  • Width: 0.675 / 17.150
  • Height: 0.335 / 8.5
  • Primary Inductance: 40µH
  • Turns Ratio: 1 : 0.125 : 0.458
  • Geometry: EFD15
  • Mounting Type: Surface Mount
    • Download Datasheet
