Allied Components

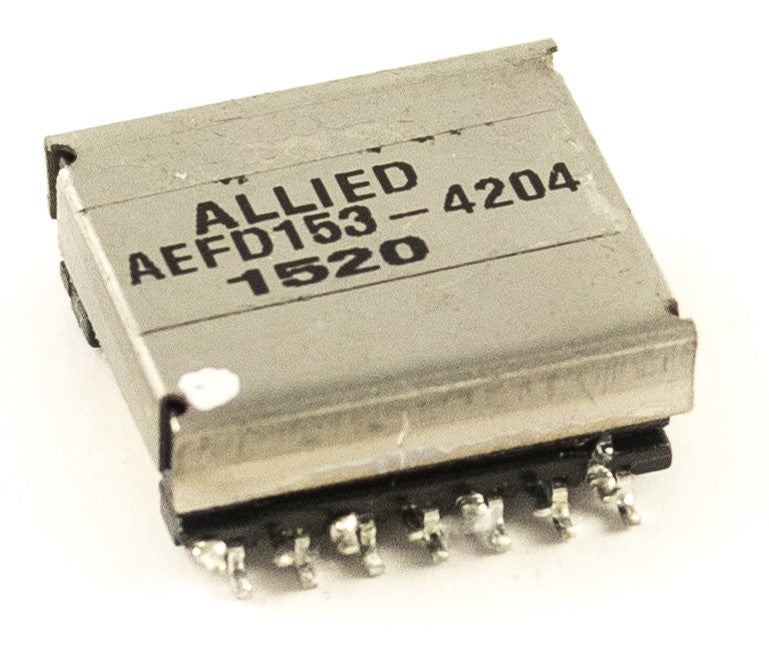

EFD15.3 Horizontal Mount / AEFD153-4204

$0.00
  • SMD Low Profile Transformer
  • EFD15.3 Design
  • Built to meet UL Class B 130 File Number E349541
Part Number

Specifications
  • Pins: 14
  • Op Temp Range: -40°C to +85°C
  • Length: 0.689 / 17.5
  • Width: 0.642 / 16.3
  • Height: 0.315 / 8.0
  • Primary Inductance: 235µH
  • Turns Ratio: 1 : 0.44 : 0.44 : 1.03 : 1.06
  • Geometry: EFD15.3
  • Mounting Type: Surface Mount
    • Download Datasheet
