Allied Components

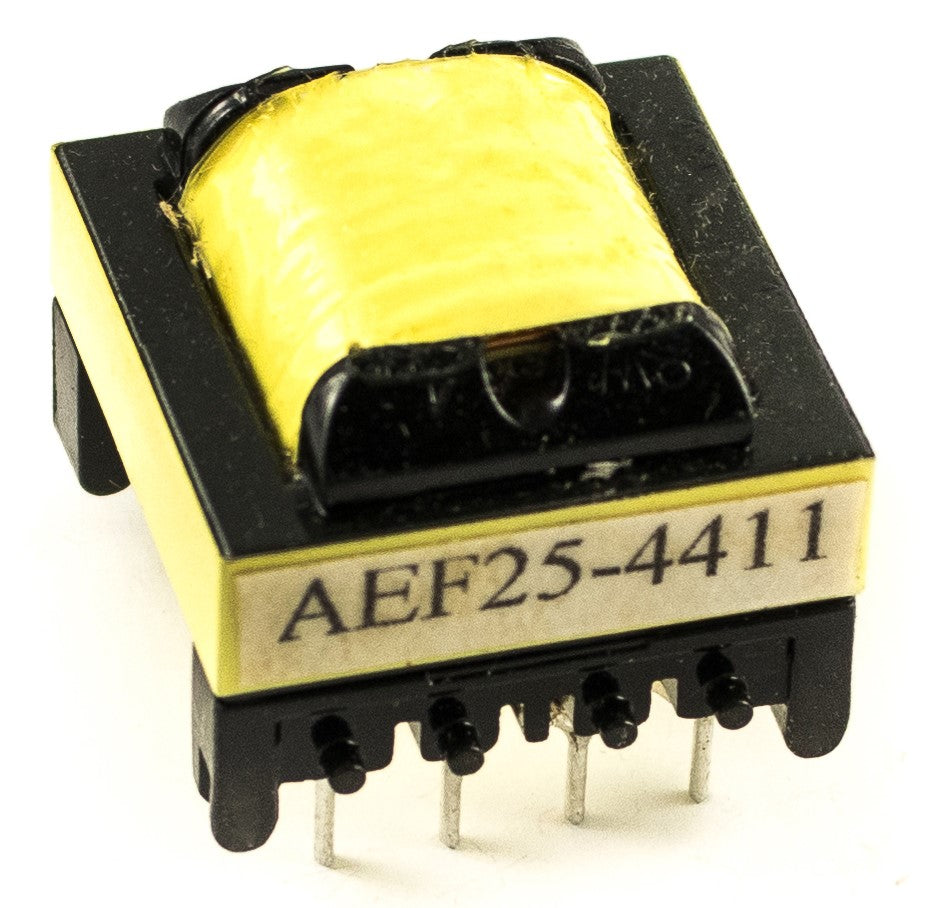

EF25 Horizontal Mount / AEF25-4411

$0.00
  • EF25 Core design
  • 8pin, Through hole, horizontal mount package
  • Operating Temperature Range: -40ºC to +125ºC
Part Number

Specifications
  • Pins: 8
  • Op Temp Range: -40°C to +125°C
  • Length: 1.142 / 29.00
  • Width: 1.024 / 26.00
  • Height: 0.827 / 21.00
  • Primary Inductance: 317µH
  • Turns Ratio: (1.143 : 1) (2.105 : 1)
  • Geometry: EF25
  • Mounting Type: Through-Hole
    • Download Datasheet
