Allied Components

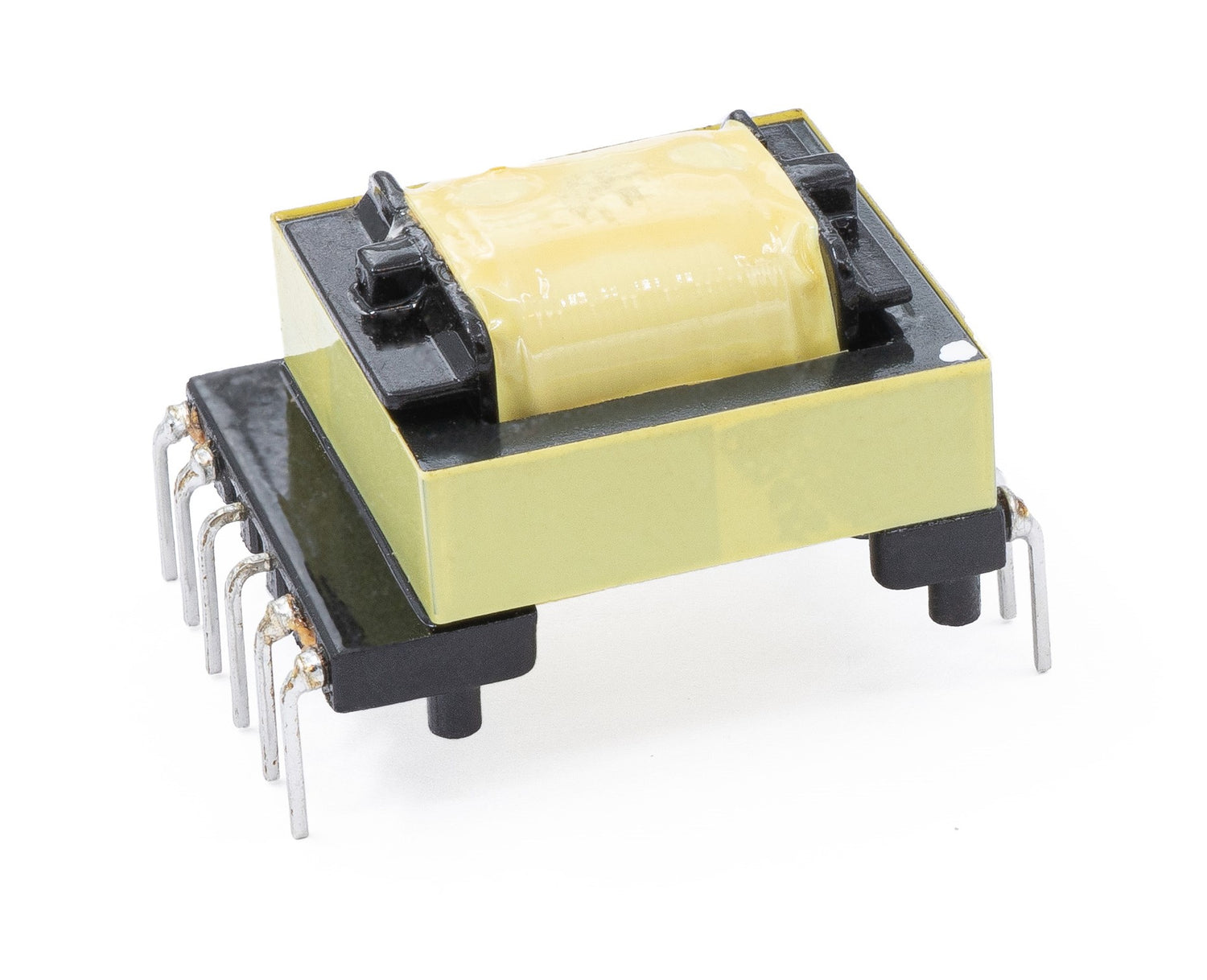

EF25 Horizontal Mount / AEF25-4014-A

$0.00
  • EF25 Through Hole Design
  • 12 Pin Horizontal Mount Package
  • Operating temp: -20ºC to +125ºC
Part Number

Specifications
  • Pins: 12
  • Op Temp Range: -20°C to +125°C
  • Length: 1.437 / 36.5
  • Width: 1.083 / 27.5
  • Height: .807 / 20.5
  • Primary Inductance: 347µH
  • Turns Ratio: 1 : 0.137 : 0.235
  • Geometry: EF25
  • Mounting Type: Through-Hole
    • Download Datasheet
