Allied Components

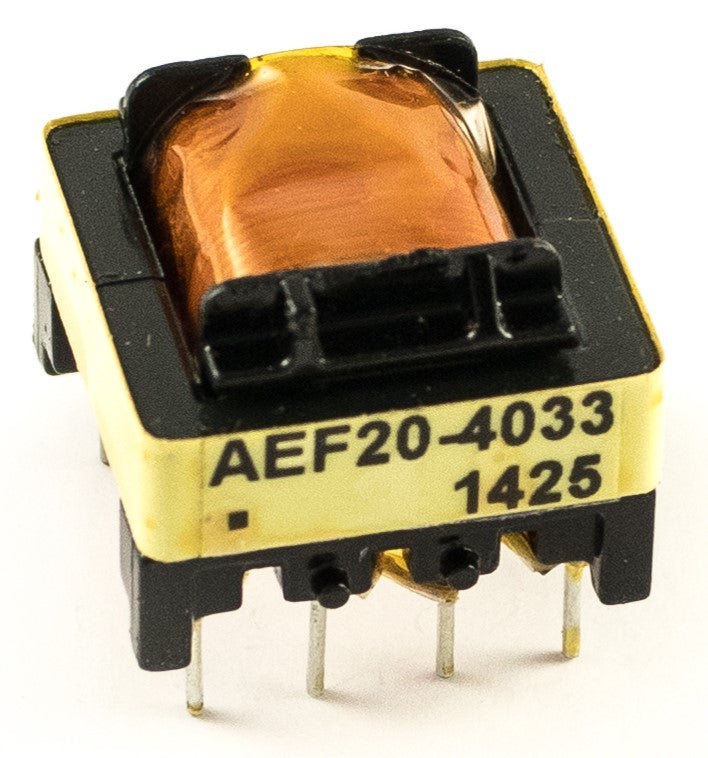

EF20 Horizontal Mount / AEF20-4033

$0.00
  • EF20 Ferrite Core Design
  • 10 Pin Through Hole
  • Flyback Topology
Part Number

Specifications
  • Pins: 8
  • Op Temp Range: -20°C to +85°C
  • Length: 0.846 / 21.5
  • Width: 0.846 / 21.5
  • Height: 0.650 / 16.5
  • Primary Inductance: 1.35mH
  • Turns Ratio: 1 : 0.207 : 0.217
  • Geometry: EF20
  • Mounting Type: Through-Hole
    • Download Datasheet
