Allied Components

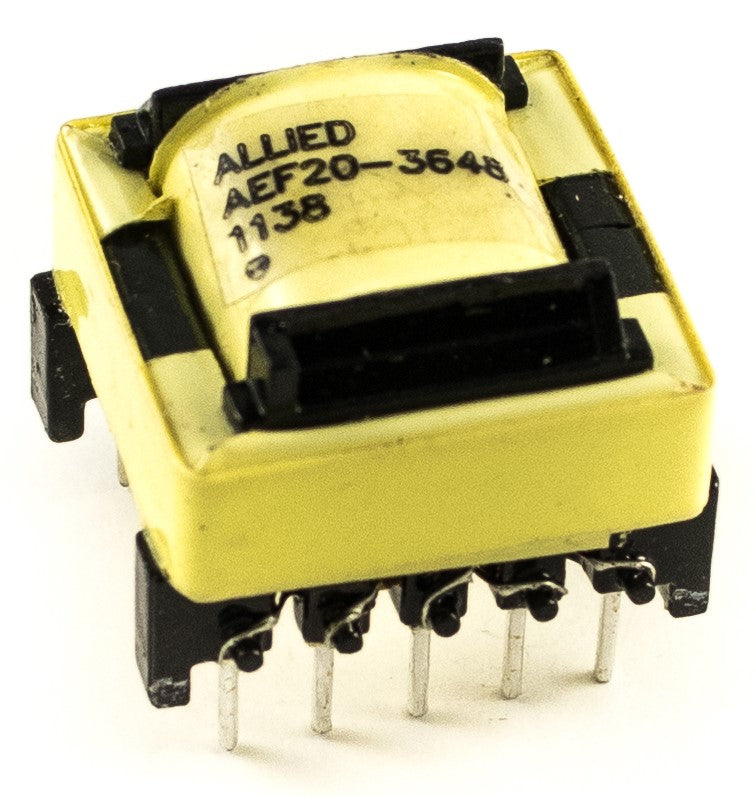

EF20 Horizontal Mount / AEF20-3648

$0.00
  • EF20 Ferrite Core Design
  • 10 Pin Through Hole
  • Flyback Topology
Part Number

Specifications
  • Pins: 10
  • Op Temp Range: -20°C to +85°C
  • Length: 0.897 / 22.784
  • Width: 0.850 / 21.590
  • Height: 0.670 / 17.018
  • Primary Inductance: 1mH
  • Turns Ratio: (1 : 1) (4.25 : 1) (16.8 : 1) (5.6 : 1)
  • Geometry: EF20
  • Mounting Type: Through-Hole
    • Download Datasheet
