Allied Components

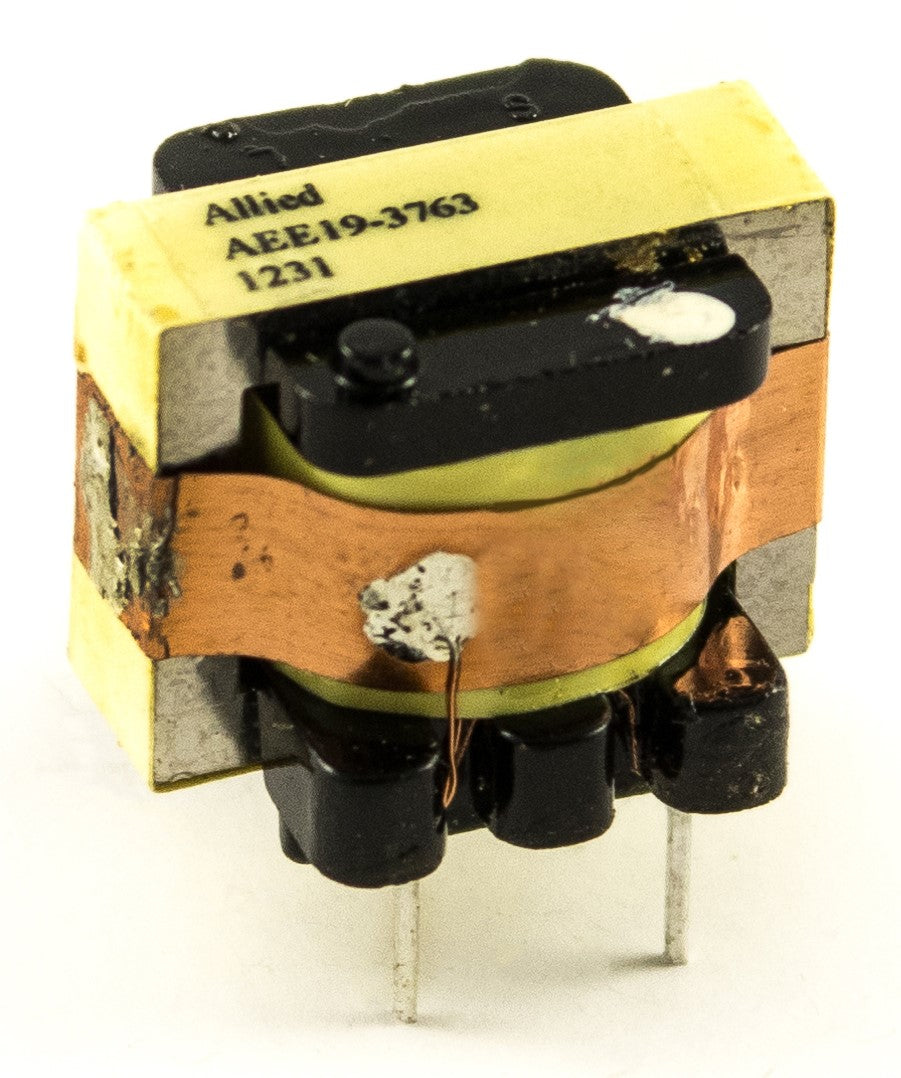

EE19 Vertical Mount / AEE19-3763

$0.00
  • EE19 Design
  • Through Hole Vertical Mount
  • Operating Temperature Range: -20°C to +85°C
  • Copper Shield Grounded to Pin 3
Part Number

Specifications
  • Pins: 6
  • Op Temp Range: -20°C to +85°C
  • Length: 0.847 / 21.514
  • Width: 0.790 / 20.066
  • Height: 0.750 / 19.050
  • Primary Inductance: 140KΩ
  • Turns Ratio: 1 : 12
  • Geometry: EE19
  • Mounting Type: Through-Hole
    • Download Datasheet
