Allied Components

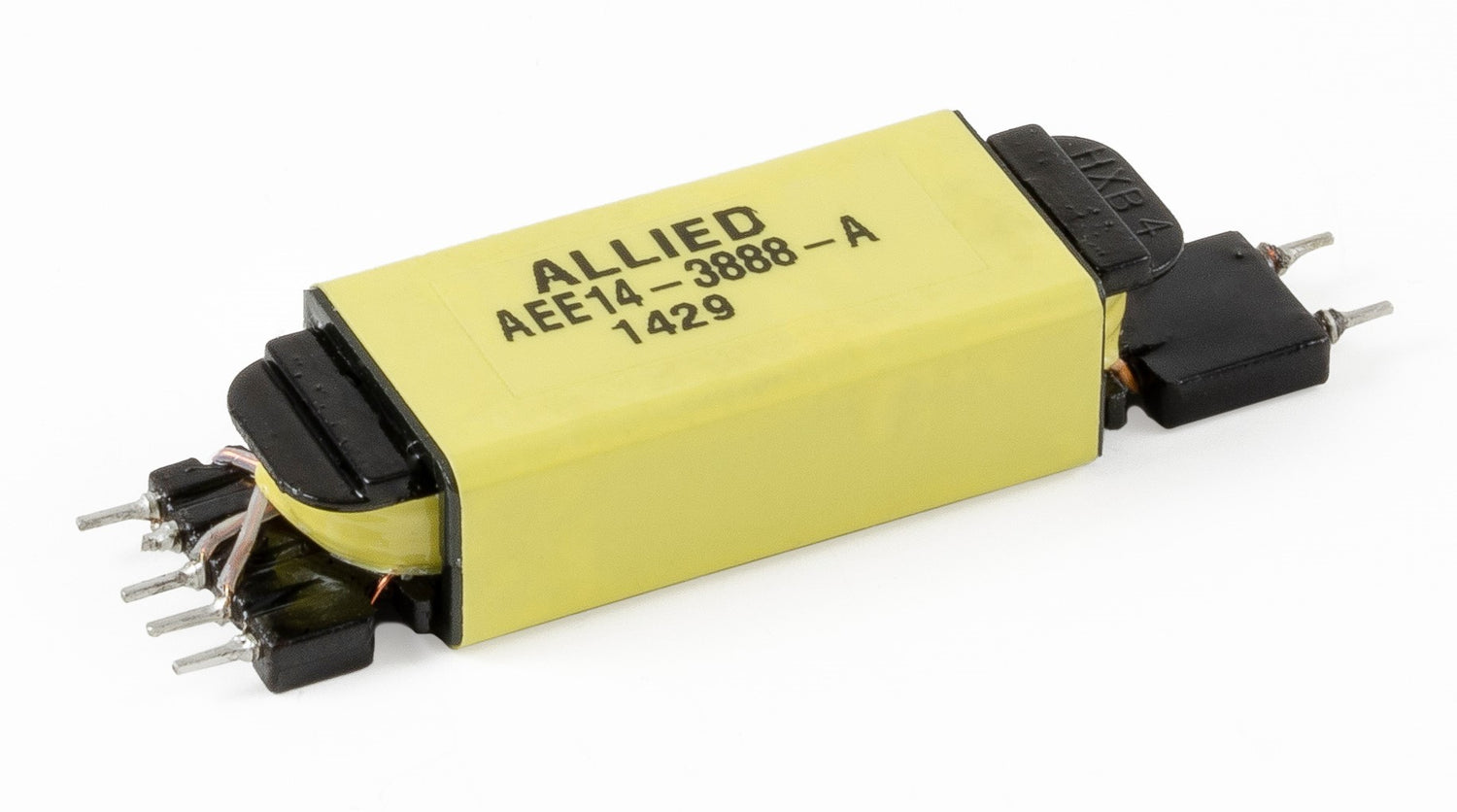

EE14 Horizontal Recess Mount / AEE14-3888-A

$0.00
  • SMD Recess Mount
  • For Lighting Applications
  • Meets UL Class B 130ºC UL File number E349541
  • Power rating 20 watts
Part Number

Specifications
  • Pins: 8
  • Op Temp Range: -40°C to +85°C
  • Length: 2.063 / 52.4
  • Width: 0.669 / 17.0
  • Height: 0.453 / 11.5
  • Primary Inductance: 600µH
  • Turns Ratio: 1: 0.16 : 0.38
  • Geometry: EE14
  • Mounting Type: Surface Mount
    • Download Datasheet
