Allied Components

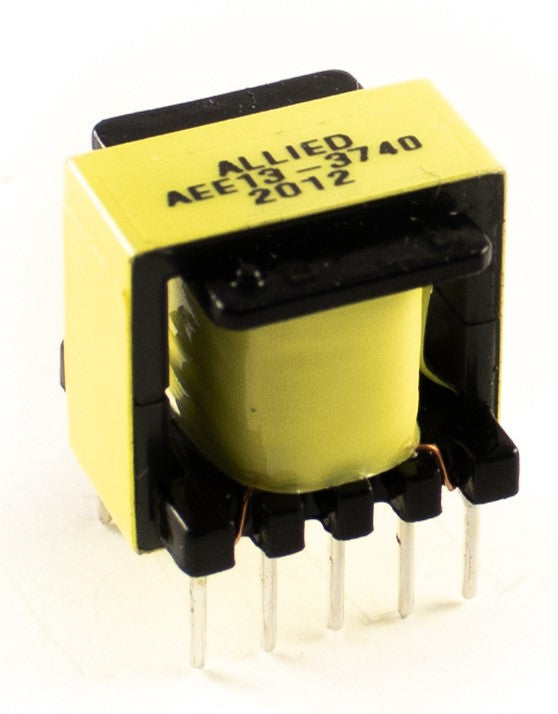

EE13 Vertical Mount / AEE13-3740

$0.00
  • EE13 Vertical Core Configuration
  • 10 Pin Through Hole Mounting
  • UL Class B130ºC Insulation, File E349541
Part Number

Specifications
  • Pins: 10
  • Op Temp Range: -40°C to +85°C
  • Length: 0.571 / 14.5
  • Width: 0.551 / 14.0
  • Height: 0.551 / 14.0
  • Primary Inductance: 100µH
  • Turns Ratio: 21.5 : 1
  • Geometry: EE13
  • Mounting Type: Through-Hole
    • Download Datasheet
