Allied Components

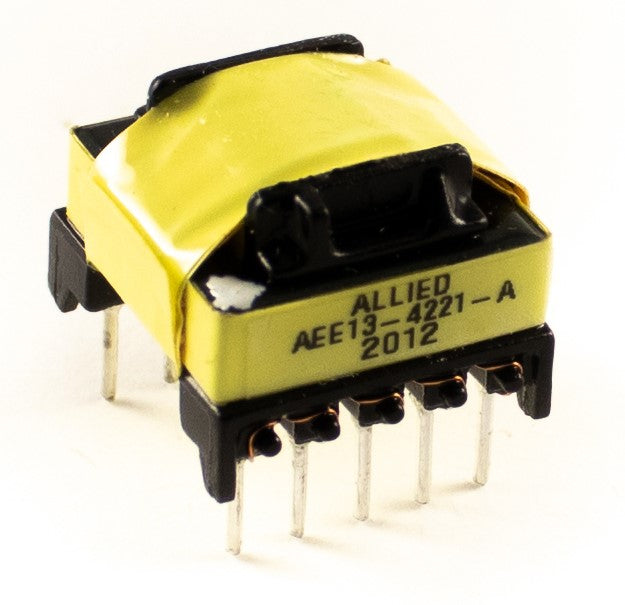

EE13 Horizontal Mount / AEE13-4221-A

$0.00
  • EE13 Horizontal Core Configuration
  • 10 Pin Through Hole Mounting
  • Operating Temperature: -40ºC - 85ºC
  • UL Class B 130ºC Insulation, File E349541
Part Number

Specifications
  • Pins: 10
  • Op Temp Range: -40°C to +85°C
  • Length: 0.630 / 16.0
  • Width: 0.591 / 15.0
  • Height: 0.453 / 11.5
  • Primary Inductance: 270µH
  • Turns Ratio: 1 : 0.42 : 0.46 : 0.46 : 0.46
  • Geometry: EE13
  • Mounting Type: Through-Hole
    • Download Datasheet
