Allied Components

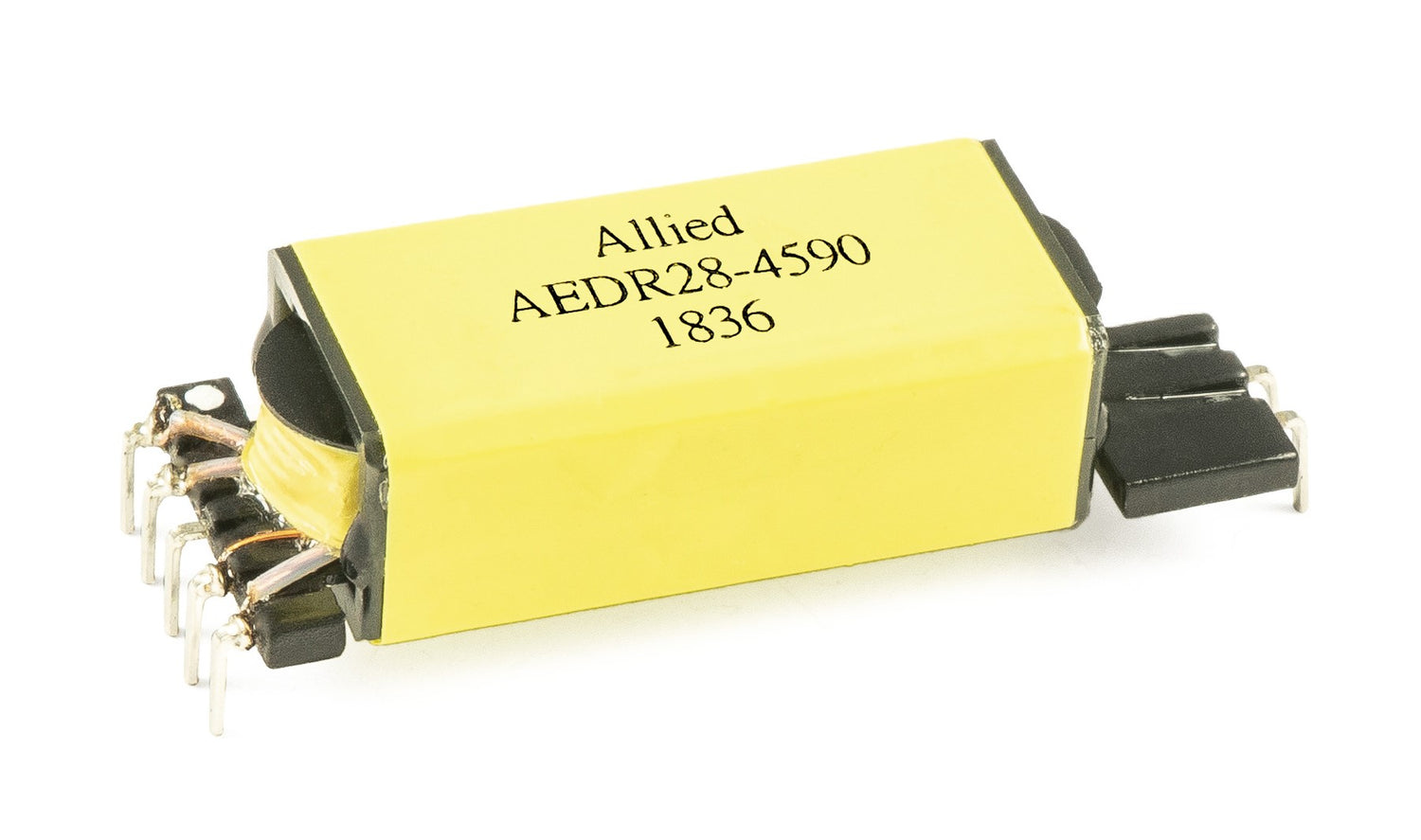

EDR28 / AEDR28-4590

$0.00
  • EDR28 Horizontal Core Configuration
  • 7 Pin Through Hole Mounting
  • Operating Temperature Range: -40°C to +85°C
Part Number

Specifications
  • Pins: 7
  • Op Temp Range: -40°C to +85°C
  • Length: 1.752 / 44.5
  • Width: .630 / 16.0
  • Height: .453 / 11.5
  • Primary Inductance: 790µH
  • Turns Ratio: 3.889 : 1
  • Geometry: EDR28
  • Mounting Type: Through-Hole
    • Download Datasheet
