Allied Components

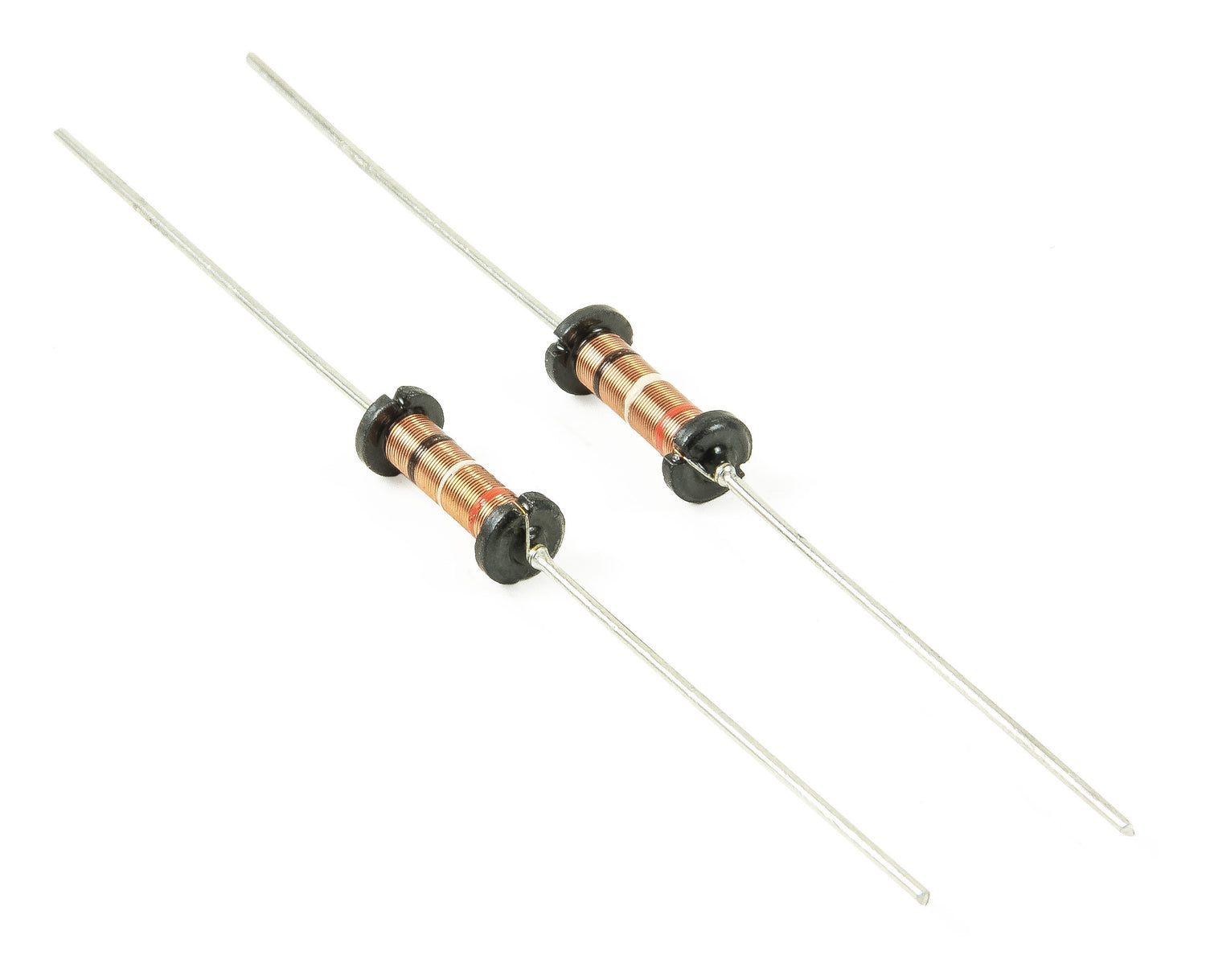

AVC40I Series

$0.00

Features

  • High Q, High Self-Resonant Frequency
  • Varnish Coated
  • Available on Tape and Reel for Auto placement
  • Ferrite core

Electrical

  • Inductance Range: 10μH to 100μH
  • Tolerance: 5% over entire range
  • Operating Temp.: -55°C to +125°C

Test Equipment

  • (L) & (Q): HP4342A & HP4285A

Physical

  • Marking: 3 band color code
  • Bulk Packaging: 200 per Bag, 3600 per Carton
  • Tape & Reel Packaging: 500 per Reel 2500 per Carton.
Part Number

Specifications
  • Inductance: 10µH
  • Rated Current: 1500mA
  • DCR Max: 0.11Ω
  • Op Temp Range: -55°C to +125°C
  • Q Min: 69
  • Length: 0.875 / 22.23
  • Mounting Type: Through-Hole
  • Shielded: N
    • Download Datasheet
