Allied Components

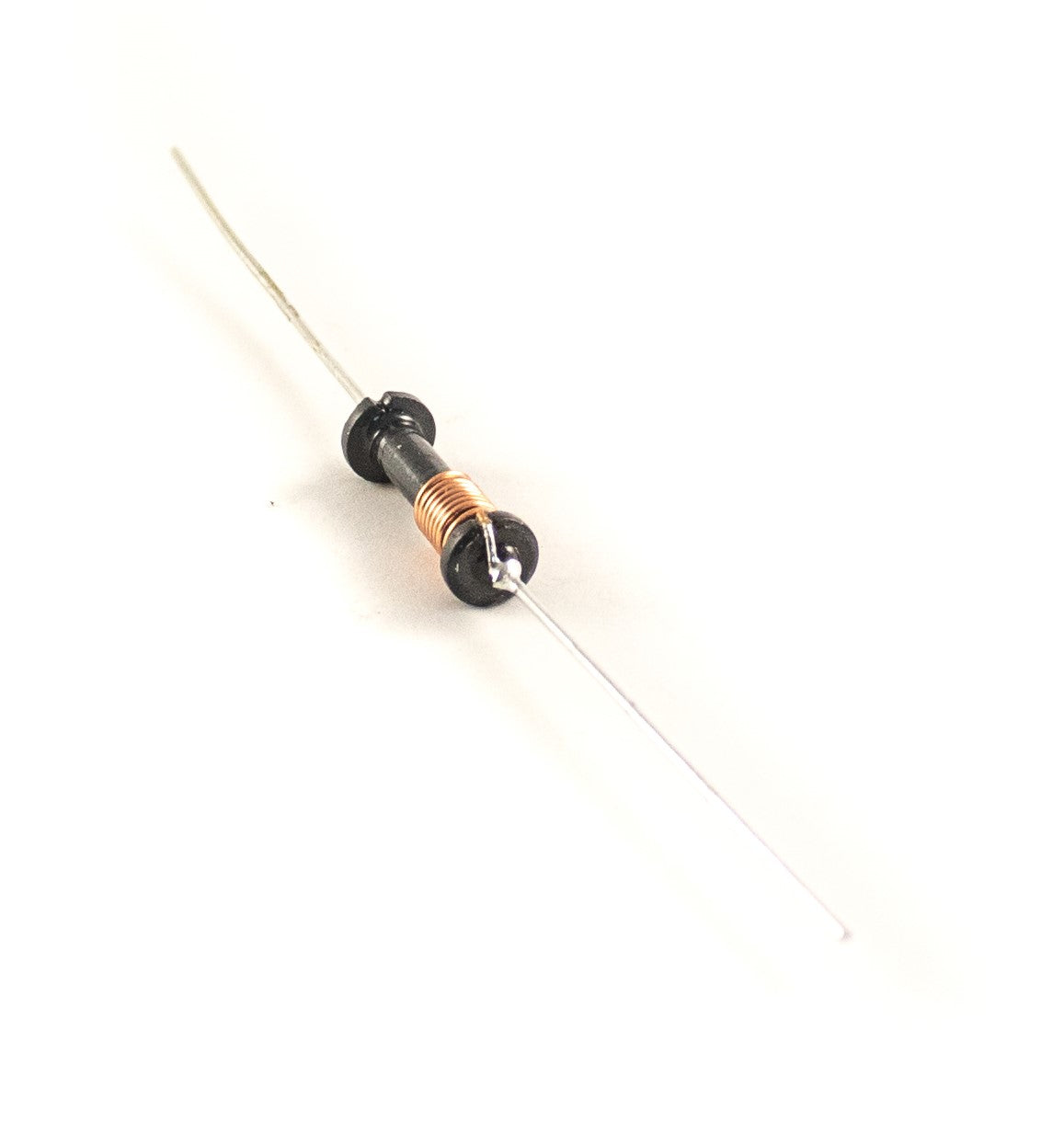

AVC30P Series

$0.00

Features

  • High Q, High Self-Resonant Frequency
  • Varnish Coated
  • Available on Tape and Reel for Auto placement
  • Ferrite core

Electrical

  • Inductance Range: 1.0µH to 10µH
  • Tolerance: 20% and 10%
  • Operating Temp: -55°C to +125°C

Test Equipment

  • (L) & (Q): HP4342A & HP4285A

Physical

  • Bulk Packaging: 200 per Bag, 3600 per Carton
  • Tape & Reel Packaging:: 500 per Reel 2500 per Carton.
Part Number

Specifications
  • Inductance: 1µH
  • Rated Current: 2000mA
  • DCR Max: 0.05Ω
  • Op Temp Range: -55°C to +125°C
  • Q Min: 60
  • Length: .750 / 19.05
  • Mounting Type: Through-Hole
  • Shielded: N
    • Download Datasheet
