Allied Components

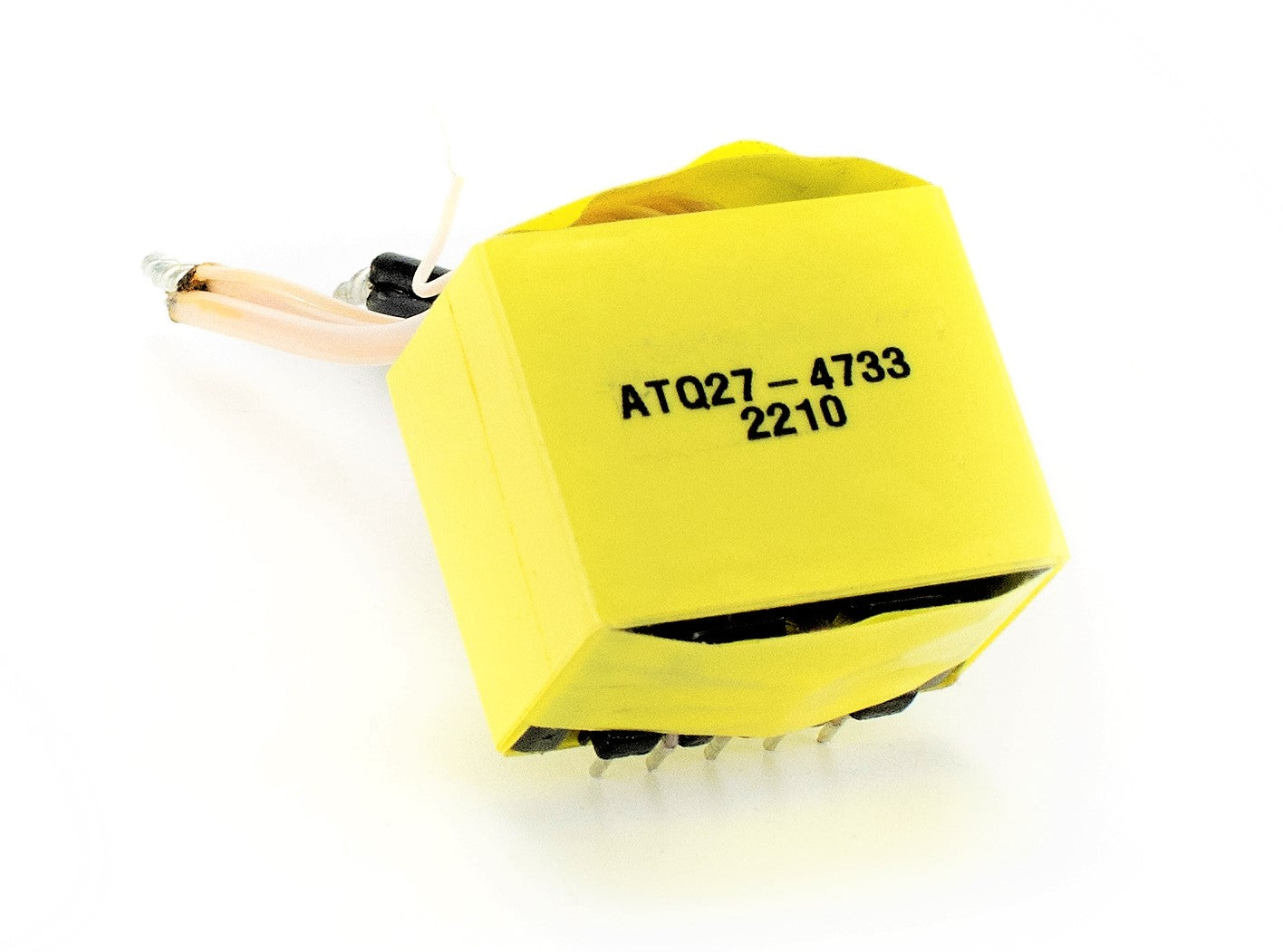

ATQ2716 Horizontal Mount / ATQ27-4733

$0.00
  • ATQ2716 Horizontal Mount
  • 7 Pin Through Hole Design
  • Industrial Operating Temp Range: -40°C to +85°C
Part Number

Specifications
  • Pins: 7
  • Op Temp Range: -40°C to +85°C
  • Length: 1.280 / 32.5
  • Width: 1.142 / 29.0
  • Height: .709 / 18.0
  • Primary Inductance: 210µH
  • Turns Ratio: 1 : .182 : .136 : .136 : .136
  • Geometry: ATQ2716
  • Mounting Type: Through-Hole
    • Download Datasheet
