ASPC80 Series
Regular price
$0.00
Unit price
/
Unavailable
Features

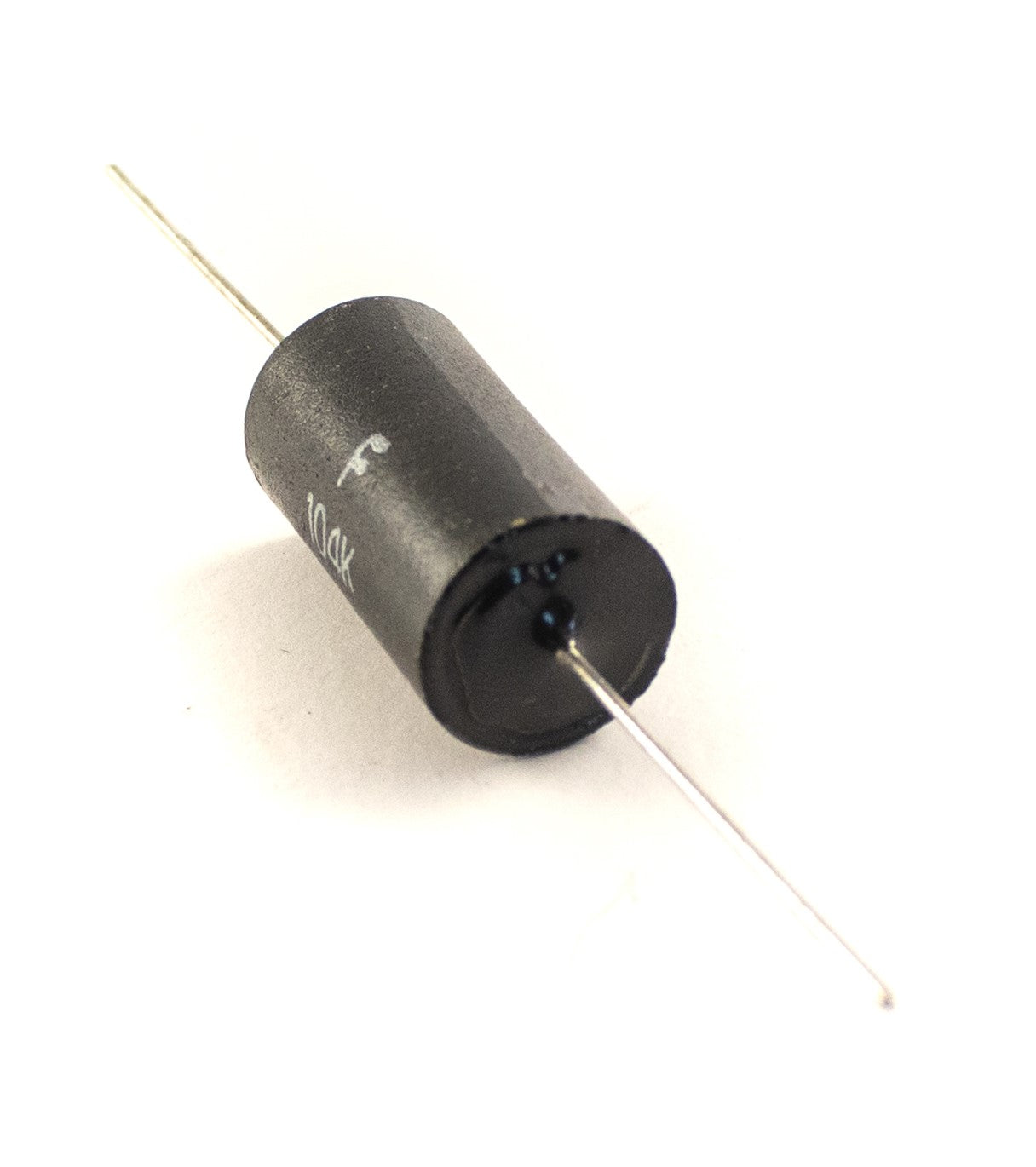

- Axial Leaded Power Chokes
- Magnetically Shielded
- Epoxy End Caps for added Lead Strength and Protection
Electrical
- Inductance Range: 1.0µH to 680mH
- Tolerance: ±10% entire range
- Test Frequency: 1KHz
- Operating Temp: -55°C to +125°C
- Current Rating: Based on 0.33 watt power dissapation for approximately 20°C Temperature Rise.
Test Equipment
- Inductance: HP 4263B (1R0M-823K) HP4284-A (104K-684K)
- Current: 11021 Current Source
- DCR: HP4263B DCR Meter
Physical
- Packaging: Bulk
- Marking: EIA Inductance code
ASPC80 Series - ASPC80-1R0M-RC is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Specifications
Specifications
- Inductance: 1µH
- Rated Current: 1500mA
- DCR Max: 0.0066Ω
- Op Temp Range: -55°C to +125°C
- Length: 1.000 / 25.4
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 1.2µH
- Rated Current: 1400mA
- DCR Max: 0.007Ω
- Op Temp Range: -55°C to +125°C
- Length: 1.000 / 25.4
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 1.5µH
- Rated Current: 1400mA
- DCR Max: 0.008Ω
- Op Temp Range: -55°C to +125°C
- Length: 1.000 / 25.4
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 1.8µH
- Rated Current: 1400mA
- DCR Max: 0.008Ω
- Op Temp Range: -55°C to +125°C
- Length: 1.000 / 25.4
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 2.2µH
- Rated Current: 1400mA
- DCR Max: 0.008Ω
- Op Temp Range: -55°C to +125°C
- Length: 1.000 / 25.4
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 2.7µH
- Rated Current: 1400mA
- DCR Max: 0.009Ω
- Op Temp Range: -55°C to +125°C
- Length: 1.000 / 25.4
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 3.3µH
- Rated Current: 1400mA
- DCR Max: 0.009Ω
- Op Temp Range: -55°C to +125°C
- Length: 1.000 / 25.4
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 3.9µH
- Rated Current: 1400mA
- DCR Max: 0.009Ω
- Op Temp Range: -55°C to +125°C
- Length: 1.000 / 25.4
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 4.7µH
- Rated Current: 1400mA
- DCR Max: 0.012Ω
- Op Temp Range: -55°C to +125°C
- Length: 1.000 / 25.4
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 5.6µH
- Rated Current: 1400mA
- DCR Max: 0.012Ω
- Op Temp Range: -55°C to +125°C
- Length: 1.000 / 25.4
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 6.8µH
- Rated Current: 1400mA
- DCR Max: 0.012Ω
- Op Temp Range: -55°C to +125°C
- Length: 1.000 / 25.4
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 8.2µH
- Rated Current: 1400mA
- DCR Max: 0.013Ω
- Op Temp Range: -55°C to +125°C
- Length: 1.000 / 25.4
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 10µH
- Rated Current: 1400mA
- DCR Max: 0.013Ω
- Op Temp Range: -55°C to +125°C
- Length: 1.000 / 25.4
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 12µH
- Rated Current: 1400mA
- DCR Max: 0.013Ω
- Op Temp Range: -55°C to +125°C
- Length: 1.000 / 25.4
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 15µH
- Rated Current: 1400mA
- DCR Max: 0.014Ω
- Op Temp Range: -55°C to +125°C
- Length: 1.000 / 25.4
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 18µH
- Rated Current: 1400mA
- DCR Max: 0.017Ω
- Op Temp Range: -55°C to +125°C
- Length: 1.000 / 25.4
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 22µH
- Rated Current: 1400mA
- DCR Max: 0.02Ω
- Op Temp Range: -55°C to +125°C
- Length: 1.000 / 25.4
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 27µH
- Rated Current: 1400mA
- DCR Max: 0.02Ω
- Op Temp Range: -55°C to +125°C
- Length: 1.000 / 25.4
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 33µH
- Rated Current: 1390mA
- DCR Max: 0.022Ω
- Op Temp Range: -55°C to +125°C
- Length: 1.000 / 25.4
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 39µH
- Rated Current: 1360mA
- DCR Max: 0.023Ω
- Op Temp Range: -55°C to +125°C
- Length: 1.000 / 25.4
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 47µH
- Rated Current: 1350mA
- DCR Max: 0.024Ω
- Op Temp Range: -55°C to +125°C
- Length: 1.000 / 25.4
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 56µH
- Rated Current: 1350mA
- DCR Max: 0.027Ω
- Op Temp Range: -55°C to +125°C
- Length: 1.000 / 25.4
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 68µH
- Rated Current: 1350mA
- DCR Max: 0.028Ω
- Op Temp Range: -55°C to +125°C
- Length: 1.000 / 25.4
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 82µH
- Rated Current: 1350mA
- DCR Max: 0.029Ω
- Op Temp Range: -55°C to +125°C
- Length: 1.000 / 25.4
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 100µH
- Rated Current: 1350mA
- DCR Max: 0.03Ω
- Op Temp Range: -55°C to +125°C
- Length: 1.000 / 25.4
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 120µH
- Rated Current: 1350mA
- DCR Max: 0.034Ω
- Op Temp Range: -55°C to +125°C
- Length: 1.000 / 25.4
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 150µH
- Rated Current: 1350mA
- DCR Max: 0.036Ω
- Op Temp Range: -55°C to +125°C
- Length: 1.000 / 25.4
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 180µH
- Rated Current: 1350mA
- DCR Max: 0.044Ω
- Op Temp Range: -55°C to +125°C
- Length: 1.000 / 25.4
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 220µH
- Rated Current: 1350mA
- DCR Max: 0.047Ω
- Op Temp Range: -55°C to +125°C
- Length: 1.000 / 25.4
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 270µH
- Rated Current: 1350mA
- DCR Max: 0.049Ω
- Op Temp Range: -55°C to +125°C
- Length: 1.000 / 25.4
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 330µH
- Rated Current: 1300mA
- DCR Max: 0.052Ω
- Op Temp Range: -55°C to +125°C
- Length: 1.000 / 25.4
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 390µH
- Rated Current: 1300mA
- DCR Max: 0.053Ω
- Op Temp Range: -55°C to +125°C
- Length: 1.000 / 25.4
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 470µH
- Rated Current: 1300mA
- DCR Max: 0.058Ω
- Op Temp Range: -55°C to +125°C
- Length: 1.000 / 25.4
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 560µH
- Rated Current: 1300mA
- DCR Max: 0.063Ω
- Op Temp Range: -55°C to +125°C
- Length: 1.000 / 25.4
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 680µH
- Rated Current: 1300mA
- DCR Max: 0.068Ω
- Op Temp Range: -55°C to +125°C
- Length: 1.000 / 25.4
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 820µH
- Rated Current: 1300mA
- DCR Max: 0.08Ω
- Op Temp Range: -55°C to +125°C
- Length: 1.000 / 25.4
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 1000µH
- Rated Current: 1300mA
- DCR Max: 0.091Ω
- Op Temp Range: -55°C to +125°C
- Length: 1.000 / 25.4
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 1200µH
- Rated Current: 1250mA
- DCR Max: 0.11Ω
- Op Temp Range: -55°C to +125°C
- Length: 1.000 / 25.4
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 1500µH
- Rated Current: 1250mA
- DCR Max: 0.116Ω
- Op Temp Range: -55°C to +125°C
- Length: 1.000 / 25.4
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 1800µH
- Rated Current: 1250mA
- DCR Max: 0.13Ω
- Op Temp Range: -55°C to +125°C
- Length: 1.000 / 25.4
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 2.2mH
- Rated Current: 1120mA
- DCR Max: 0.177Ω
- Op Temp Range: -55°C to +125°C
- Length: 1.000 / 25.4
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 2.7mH
- Rated Current: 1120mA
- DCR Max: 0.19Ω
- Op Temp Range: -55°C to +125°C
- Length: 1.000 / 25.4
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 3300mH
- Rated Current: 1120mA
- DCR Max: 0.213Ω
- Op Temp Range: -55°C to +125°C
- Length: 1.000 / 25.4
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 3.9mH
- Rated Current: 880mA
- DCR Max: 0.287Ω
- Op Temp Range: -55°C to +125°C
- Length: 1.000 / 25.4
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 4.7mH
- Rated Current: 880mA
- DCR Max: 0.364Ω
- Op Temp Range: -55°C to +125°C
- Length: 1.000 / 25.4
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 5.6mH
- Rated Current: 707mA
- DCR Max: 0.44Ω
- Op Temp Range: -55°C to +125°C
- Length: 1.000 / 25.4
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 6.8mH
- Rated Current: 556mA
- DCR Max: 0.562Ω
- Op Temp Range: -55°C to +125°C
- Length: 1.000 / 25.4
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 8.2mH
- Rated Current: 556mA
- DCR Max: 0.7Ω
- Op Temp Range: -55°C to +125°C
- Length: 1.000 / 25.4
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 10mH
- Rated Current: 437mA
- DCR Max: 0.741Ω
- Op Temp Range: -55°C to +125°C
- Length: 1.000 / 25.4
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 12mH
- Rated Current: 437mA
- DCR Max: 0.827Ω
- Op Temp Range: -55°C to +125°C
- Length: 1.000 / 25.4
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 15mH
- Rated Current: 350mA
- DCR Max: 1.1Ω
- Op Temp Range: -55°C to +125°C
- Length: 1.000 / 25.4
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 18mH
- Rated Current: 227mA
- DCR Max: 1.26Ω
- Op Temp Range: -55°C to +125°C
- Length: 1.000 / 25.4
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 22mH
- Rated Current: 224mA
- DCR Max: 1.67Ω
- Op Temp Range: -55°C to +125°C
- Length: 1.000 / 25.4
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 27mH
- Rated Current: 224mA
- DCR Max: 1.92Ω
- Op Temp Range: -55°C to +125°C
- Length: 1.000 / 25.4
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 33mH
- Rated Current: 224mA
- DCR Max: 2.78Ω
- Op Temp Range: -55°C to +125°C
- Length: 1.000 / 25.4
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 39mH
- Rated Current: 224mA
- DCR Max: 3.48Ω
- Op Temp Range: -55°C to +125°C
- Length: 1.000 / 25.4
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 47mH
- Rated Current: 224mA
- DCR Max: 4.32Ω
- Op Temp Range: -55°C to +125°C
- Length: 1.000 / 25.4
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 56mH
- Rated Current: 224mA
- DCR Max: 5.44Ω
- Op Temp Range: -55°C to +125°C
- Length: 1.000 / 25.4
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 68mH
- Rated Current: 224mA
- DCR Max: 6.8Ω
- Op Temp Range: -55°C to +125°C
- Length: 1.000 / 25.4
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 82mH
- Rated Current: 176mA
- DCR Max: 7.2Ω
- Op Temp Range: -55°C to +125°C
- Length: 1.000 / 25.4
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 100mH
- Rated Current: 176mA
- DCR Max: 8.5Ω
- Op Temp Range: -55°C to +125°C
- Length: 1.000 / 25.4
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 120mH
- Rated Current: 138mA
- DCR Max: 10.56Ω
- Op Temp Range: -55°C to +125°C
- Length: 1.000 / 25.4
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 150mH
- Rated Current: 138mA
- DCR Max: 12.24Ω
- Op Temp Range: -55°C to +125°C
- Length: 1.000 / 25.4
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 180mH
- Rated Current: 138mA
- DCR Max: 13.68Ω
- Op Temp Range: -55°C to +125°C
- Length: 1.000 / 25.4
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 220mH
- Rated Current: 110mA
- DCR Max: 24Ω
- Op Temp Range: -55°C to +125°C
- Length: 1.000 / 25.4
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 270mH
- Rated Current: 88mA
- DCR Max: 27Ω
- Op Temp Range: -55°C to +125°C
- Length: 1.000 / 25.4
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 330mH
- Rated Current: 80mA
- DCR Max: 32Ω
- Op Temp Range: -55°C to +125°C
- Length: 1.000 / 25.4
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 390mH
- Rated Current: 71mA
- DCR Max: 37Ω
- Op Temp Range: -55°C to +125°C
- Length: 1.000 / 25.4
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 470mH
- Rated Current: 71mA
- DCR Max: 39.48Ω
- Op Temp Range: -55°C to +125°C
- Length: 1.000 / 25.4
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 560mH
- Rated Current: 71mA
- DCR Max: 46.68Ω
- Op Temp Range: -55°C to +125°C
- Length: 1.000 / 25.4
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 680mH
- Rated Current: 71mA
- DCR Max: 56.8Ω
- Op Temp Range: -55°C to +125°C
- Length: 1.000 / 25.4
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
