Allied Components | SKU:

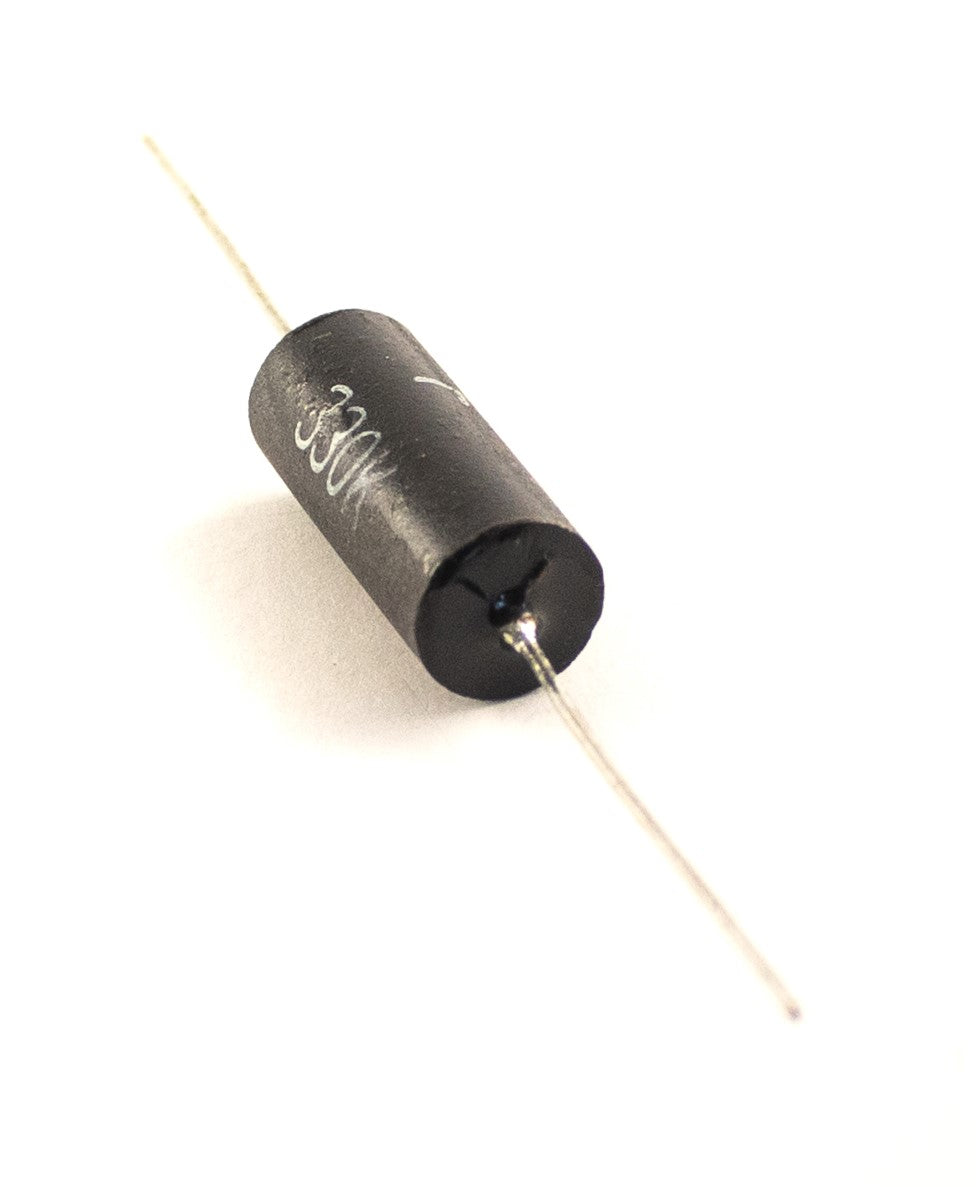

ASPC70 Series
Regular price
$0.00
Unit price
/
Unavailable
Features
- Axial Leaded Power Chokes
- Magnetically Shielded
- Epoxy End Caps for added Lead Strength and Protection
Electrical
- Inductance Range: 1.0µH to 4700mH
- Tolerance: ±20% (1.0µH to 8.2µH)±10% (10µH to 4700mH)
- Test Frequency: 1KHz
- Operating Temp: -55°C to +125°C
- Current Rating: Based on 0.33 watt power dissapation for approximately 20°C Temperature Rise.
Test Equipment
- Inductance: HP 4263B (1R0M-823K) HP4284-A (104K-475K)
- Current: 11021 Current Source
- DCR: HP4263B DCR Meter
Physical
- Packaging: Bulk
- Marking: EIA Inductance code
ASPC70 Series - ASPC70-1R0M-RC is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Specifications
Specifications
- Inductance: 1µH
- Rated Current: 707mA
- DCR Max: 0.011Ω
- Op Temp Range: -55°C to +125°C
- Length: .725 / 18.42
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 1.2µH
- Rated Current: 707mA
- DCR Max: 0.012Ω
- Op Temp Range: -55°C to +125°C
- Length: .725 / 18.42
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 1.5µH
- Rated Current: 707mA
- DCR Max: 0.012Ω
- Op Temp Range: -55°C to +125°C
- Length: .725 / 18.42
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 1.8µH
- Rated Current: 707mA
- DCR Max: 0.012Ω
- Op Temp Range: -55°C to +125°C
- Length: .725 / 18.42
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 2.2µH
- Rated Current: 707mA
- DCR Max: 0.012Ω
- Op Temp Range: -55°C to +125°C
- Length: .725 / 18.42
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 2.7µH
- Rated Current: 707mA
- DCR Max: 0.013Ω
- Op Temp Range: -55°C to +125°C
- Length: .725 / 18.42
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 3.3µH
- Rated Current: 707mA
- DCR Max: 0.013Ω
- Op Temp Range: -55°C to +125°C
- Length: .725 / 18.42
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 3.9µH
- Rated Current: 707mA
- DCR Max: 0.014Ω
- Op Temp Range: -55°C to +125°C
- Length: .725 / 18.42
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 4.7µH
- Rated Current: 707mA
- DCR Max: 0.014Ω
- Op Temp Range: -55°C to +125°C
- Length: .725 / 18.42
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 5.6µH
- Rated Current: 707mA
- DCR Max: 0.017Ω
- Op Temp Range: -55°C to +125°C
- Length: .725 / 18.42
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 6.8µH
- Rated Current: 707mA
- DCR Max: 0.018Ω
- Op Temp Range: -55°C to +125°C
- Length: .725 / 18.42
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 8.2µH
- Rated Current: 707mA
- DCR Max: 0.018Ω
- Op Temp Range: -55°C to +125°C
- Length: .725 / 18.42
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 10µH
- Rated Current: 707mA
- DCR Max: 0.02Ω
- Op Temp Range: -55°C to +125°C
- Length: .725 / 18.42
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 12µH
- Rated Current: 707mA
- DCR Max: 0.022Ω
- Op Temp Range: -55°C to +125°C
- Length: .725 / 18.42
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 15µH
- Rated Current: 707mA
- DCR Max: 0.024Ω
- Op Temp Range: -55°C to +125°C
- Length: .725 / 18.42
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 18µH
- Rated Current: 707mA
- DCR Max: 0.03Ω
- Op Temp Range: -55°C to +125°C
- Length: .725 / 18.42
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 22µH
- Rated Current: 707mA
- DCR Max: 0.032Ω
- Op Temp Range: -55°C to +125°C
- Length: .725 / 18.42
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 27µH
- Rated Current: 707mA
- DCR Max: 0.034Ω
- Op Temp Range: -55°C to +125°C
- Length: .725 / 18.42
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 33µH
- Rated Current: 707mA
- DCR Max: 0.036Ω
- Op Temp Range: -55°C to +125°C
- Length: .725 / 18.42
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 39µH
- Rated Current: 707mA
- DCR Max: 0.038Ω
- Op Temp Range: -55°C to +125°C
- Length: .725 / 18.42
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 47µH
- Rated Current: 707mA
- DCR Max: 0.04Ω
- Op Temp Range: -55°C to +125°C
- Length: .725 / 18.42
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 56µH
- Rated Current: 707mA
- DCR Max: 0.046Ω
- Op Temp Range: -55°C to +125°C
- Length: .725 / 18.42
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 68µH
- Rated Current: 707mA
- DCR Max: 0.047Ω
- Op Temp Range: -55°C to +125°C
- Length: .725 / 18.42
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 82µH
- Rated Current: 707mA
- DCR Max: 0.05Ω
- Op Temp Range: -55°C to +125°C
- Length: .725 / 18.42
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 100µH
- Rated Current: 707mA
- DCR Max: 0.064Ω
- Op Temp Range: -55°C to +125°C
- Length: .725 / 18.42
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 120µH
- Rated Current: 707mA
- DCR Max: 0.068Ω
- Op Temp Range: -55°C to +125°C
- Length: .725 / 18.42
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 150µH
- Rated Current: 707mA
- DCR Max: 0.073Ω
- Op Temp Range: -55°C to +125°C
- Length: .725 / 18.42
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 180µH
- Rated Current: 707mA
- DCR Max: 0.078Ω
- Op Temp Range: -55°C to +125°C
- Length: .725 / 18.42
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 220µH
- Rated Current: 707mA
- DCR Max: 0.082Ω
- Op Temp Range: -55°C to +125°C
- Length: .725 / 18.42
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 270µH
- Rated Current: 707mA
- DCR Max: 0.098Ω
- Op Temp Range: -55°C to +125°C
- Length: .725 / 18.42
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 330µH
- Rated Current: 556mA
- DCR Max: 0.132Ω
- Op Temp Range: -55°C to +125°C
- Length: .725 / 18.42
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 390µH
- Rated Current: 556mA
- DCR Max: 0.142Ω
- Op Temp Range: -55°C to +125°C
- Length: .725 / 18.42
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 470µH
- Rated Current: 556mA
- DCR Max: 0.17Ω
- Op Temp Range: -55°C to +125°C
- Length: .725 / 18.42
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 560µH
- Rated Current: 437mA
- DCR Max: 0.222Ω
- Op Temp Range: -55°C to +125°C
- Length: .725 / 18.42
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 680µH
- Rated Current: 437mA
- DCR Max: 0.235Ω
- Op Temp Range: -55°C to +125°C
- Length: .725 / 18.42
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 820µH
- Rated Current: 437mA
- DCR Max: 0.247Ω
- Op Temp Range: -55°C to +125°C
- Length: .725 / 18.42
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 1000µH
- Rated Current: 350mA
- DCR Max: 0.44Ω
- Op Temp Range: -55°C to +125°C
- Length: .725 / 18.42
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 1200µH
- Rated Current: 280mA
- DCR Max: 0.47Ω
- Op Temp Range: -55°C to +125°C
- Length: .725 / 18.42
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 1500µH
- Rated Current: 277mA
- DCR Max: 0.64Ω
- Op Temp Range: -55°C to +125°C
- Length: .725 / 18.42
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 1800µH
- Rated Current: 277mA
- DCR Max: 0.7Ω
- Op Temp Range: -55°C to +125°C
- Length: .725 / 18.42
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 2.2mH
- Rated Current: 224mA
- DCR Max: 0.925Ω
- Op Temp Range: -55°C to +125°C
- Length: .725 / 18.42
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 2.7mH
- Rated Current: 224mA
- DCR Max: 1.02Ω
- Op Temp Range: -55°C to +125°C
- Length: .725 / 18.42
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 3.3mH
- Rated Current: 224mA
- DCR Max: 1.16Ω
- Op Temp Range: -55°C to +125°C
- Length: .725 / 18.42
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 3.9mH
- Rated Current: 175mA
- DCR Max: 1.61Ω
- Op Temp Range: -55°C to +125°C
- Length: .725 / 18.42
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 4.7mH
- Rated Current: 175mA
- DCR Max: 1.89Ω
- Op Temp Range: -55°C to +125°C
- Length: .725 / 18.42
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 5.6mH
- Rated Current: 130mA
- DCR Max: 2.42Ω
- Op Temp Range: -55°C to +125°C
- Length: .725 / 18.42
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 6.8mH
- Rated Current: 130mA
- DCR Max: 2.67Ω
- Op Temp Range: -55°C to +125°C
- Length: .725 / 18.42
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 8.2mH
- Rated Current: 110mA
- DCR Max: 3.19Ω
- Op Temp Range: -55°C to +125°C
- Length: .725 / 18.42
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 10mH
- Rated Current: 110mA
- DCR Max: 4.16Ω
- Op Temp Range: -55°C to +125°C
- Length: .725 / 18.42
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 12mH
- Rated Current: 80mA
- DCR Max: 4.32Ω
- Op Temp Range: -55°C to +125°C
- Length: .725 / 18.42
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 15mH
- Rated Current: 80mA
- DCR Max: 4.96Ω
- Op Temp Range: -55°C to +125°C
- Length: .725 / 18.42
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 18mH
- Rated Current: 71mA
- DCR Max: 5.28Ω
- Op Temp Range: -55°C to +125°C
- Length: .725 / 18.42
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 22mH
- Rated Current: 71mA
- DCR Max: 8.06Ω
- Op Temp Range: -55°C to +125°C
- Length: .725 / 18.42
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 27mH
- Rated Current: 56mA
- DCR Max: 9.12Ω
- Op Temp Range: -55°C to +125°C
- Length: .725 / 18.42
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 33mH
- Rated Current: 56mA
- DCR Max: 12.18Ω
- Op Temp Range: -55°C to +125°C
- Length: .725 / 18.42
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 39mH
- Rated Current: 43mA
- DCR Max: 14.16Ω
- Op Temp Range: -55°C to +125°C
- Length: .725 / 18.42
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 47mH
- Rated Current: 43mA
- DCR Max: 17.18Ω
- Op Temp Range: -55°C to +125°C
- Length: .725 / 18.42
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 56mH
- Rated Current: 43mA
- DCR Max: 18.71Ω
- Op Temp Range: -55°C to +125°C
- Length: .725 / 18.42
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 68mH
- Rated Current: 43mA
- DCR Max: 27.36Ω
- Op Temp Range: -55°C to +125°C
- Length: .725 / 18.42
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 82mH
- Rated Current: 43mA
- DCR Max: 31.32Ω
- Op Temp Range: -55°C to +125°C
- Length: .725 / 18.42
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 100mH
- Rated Current: 34mA
- DCR Max: 42.84Ω
- Op Temp Range: -55°C to +125°C
- Length: .725 / 18.42
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 120mH
- Rated Current: 34mA
- DCR Max: 47.16Ω
- Op Temp Range: -55°C to +125°C
- Length: .725 / 18.42
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 150mH
- Rated Current: 27mA
- DCR Max: 61.58Ω
- Op Temp Range: -55°C to +125°C
- Length: .725 / 18.42
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 180mH
- Rated Current: 27mA
- DCR Max: 69.12Ω
- Op Temp Range: -55°C to +125°C
- Length: .725 / 18.42
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 220mH
- Rated Current: 27mA
- DCR Max: 90Ω
- Op Temp Range: -55°C to +125°C
- Length: .725 / 18.42
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 270mH
- Rated Current: 27mA
- DCR Max: 100Ω
- Op Temp Range: -55°C to +125°C
- Length: .725 / 18.42
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 330mH
- Rated Current: 22mA
- DCR Max: 117Ω
- Op Temp Range: -55°C to +125°C
- Length: .725 / 18.42
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 390mH
- Rated Current: 22mA
- DCR Max: 125Ω
- Op Temp Range: -55°C to +125°C
- Length: .725 / 18.42
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 470mH
- Rated Current: 17mA
- DCR Max: 183Ω
- Op Temp Range: -55°C to +125°C
- Length: .725 / 18.42
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 560mH
- Rated Current: 17mA
- DCR Max: 206Ω
- Op Temp Range: -55°C to +125°C
- Length: .725 / 18.42
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 680mH
- Rated Current: 14mA
- DCR Max: 282Ω
- Op Temp Range: -55°C to +125°C
- Length: .725 / 18.42
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 820mH
- Rated Current: 11mA
- DCR Max: 356Ω
- Op Temp Range: -55°C to +125°C
- Length: .725 / 18.42
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 1000mH
- Rated Current: 11mA
- DCR Max: 410Ω
- Op Temp Range: -55°C to +125°C
- Length: .725 / 18.42
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 1200mH
- Rated Current: 8.6mA
- DCR Max: 568Ω
- Op Temp Range: -55°C to +125°C
- Length: .725 / 18.42
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 1500mH
- Rated Current: 8.6mA
- DCR Max: 634Ω
- Op Temp Range: -55°C to +125°C
- Length: .725 / 18.42
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 1800mH
- Rated Current: 6.9mA
- DCR Max: 950Ω
- Op Temp Range: -55°C to +125°C
- Length: .725 / 18.42
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 2200mH
- Rated Current: 6.9mA
- DCR Max: 964Ω
- Op Temp Range: -55°C to +125°C
- Length: .725 / 18.42
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 2700mH
- Rated Current: 5.4mA
- DCR Max: 987Ω
- Op Temp Range: -55°C to +125°C
- Length: .725 / 18.42
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 3300mH
- Rated Current: 5.4mA
- DCR Max: 1400Ω
- Op Temp Range: -55°C to +125°C
- Length: .725 / 18.42
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 3900mH
- Rated Current: 5.4mA
- DCR Max: 1682Ω
- Op Temp Range: -55°C to +125°C
- Length: .725 / 18.42
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 4700mH
- Rated Current: 5.4mA
- DCR Max: 1700Ω
- Op Temp Range: -55°C to +125°C
- Length: .725 / 18.42
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
