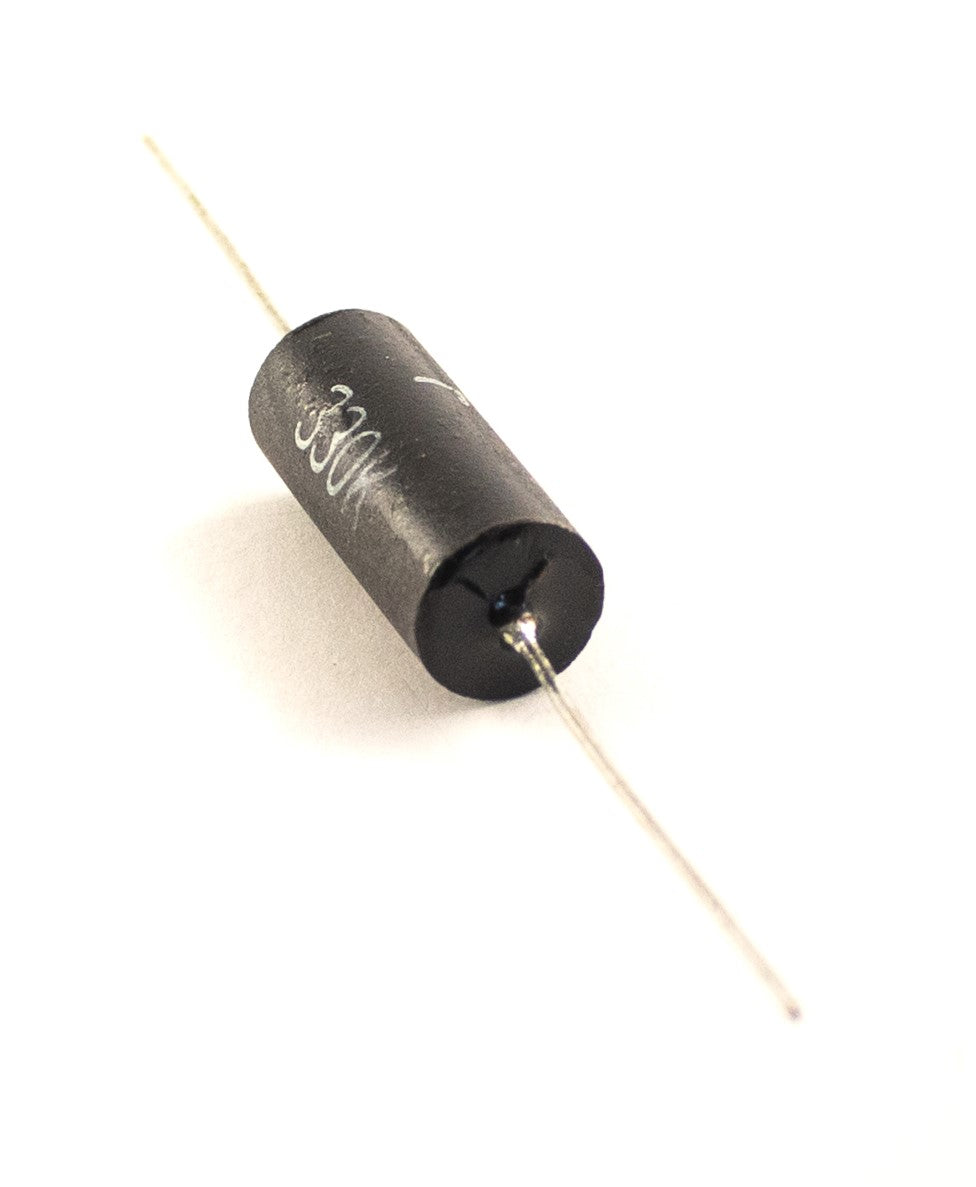

ASPC60 Series

Features

• Axial Leaded Power Chokes
• Magnetically Shielded
• Epoxy End Caps for added Lead Strength and Protection

Electrical

• Inductance Range: 250µH to 1000µH
• Tolerance: 10% over entire inductance range. Available in tighter tolerances.
• Test Frequency: 0.79MHz
• Operating Temp: -55°C to +125°C
• Current Rating: Based on 0.33 watt power dissapation for approximately 20°C Temperature Rise.
• Incremental Current: -The current at which the inductance will drop by 5% of it’s value with no load.

Test Equipment

• Inductance: CH-100 LCR Meter
• Current: CH301 Current Source and DCR meter
• DCR: CH301 Current Source and DCR Meter

Physical

• Packaging: Bulk
• Marking: EIA Inductance code
