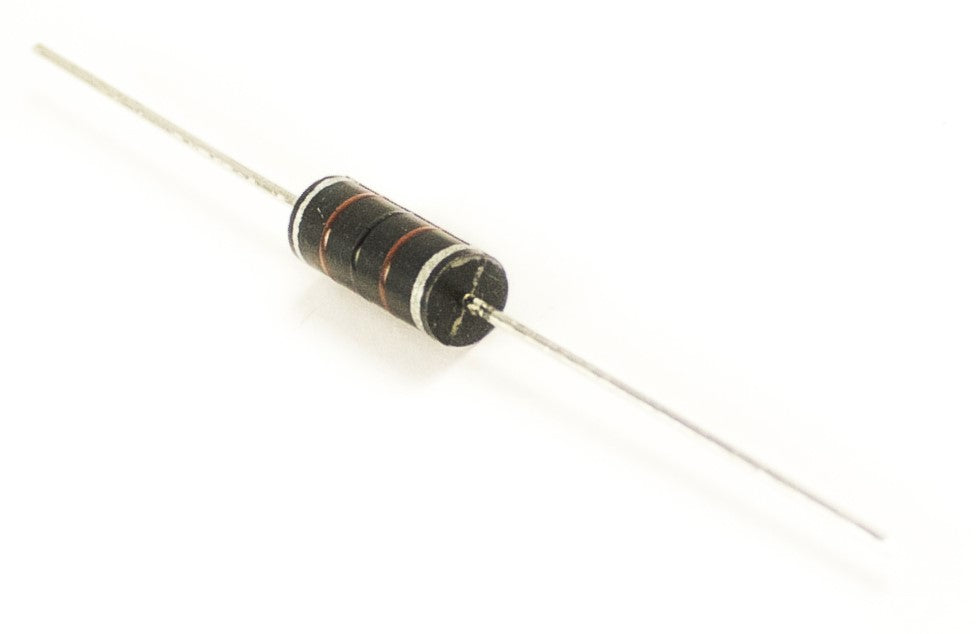

AS40 Series

$0.00

Electrical

  • Inductance Range: .10µh to 100,000µh
  • Tolerance: 10% over entire range. Tighter tolerances available.
  • Shielding: 5% coupling with 2 inductors side by side at 1KHz.
  • Rated Current: Inductance will drop 10% at rated current.
  • Test Procedures: L & Q Measured with HP4342A Q-Meter at specified Frequency. DCR Measured on CH-301 SRF Measured on HP-4191A, HP4291B.
  • Dielectric Withstanding Voltage: 1000VAC per MIL-STD-202, method 301
  • Operating Temp.: -55°C to +125°C.

Physical

  • Marking (on part): 5 Band Color Code per MIL-C-15305.
  • Marking (On Reel): Manufactures Name, Part Number, Customers Part Number, Invoice Number, Lot or Data Code.
  • Packaging (bulk): 500 pieces per bag.
  • Packaging (reel): 3000 pieces per reel.

For Tape and Reel packaging please add ”-TR” to the part number.

Part Number

Specifications
  • Inductance: 0.1µH
  • Rated Current: 1790mA
  • DCR Max: 0.025Ω
  • Op Temp Range: -55°C to +125°C
  • Q Min: 50
  • Length: 0.410 / 10.41
  • Mounting Type: Through-Hole
  • Shielded: Y
    • Download Datasheet
