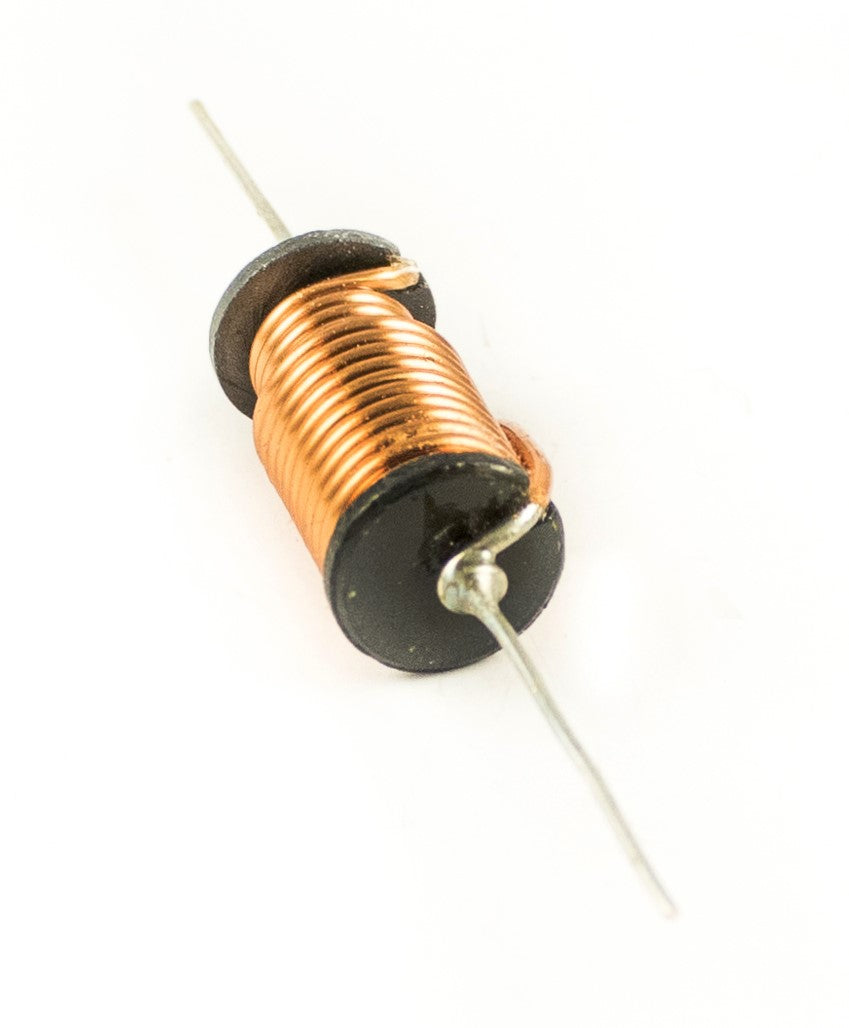

APC45 Series

Features

• Axial Leaded Power Chokes.
• Available in Bulk, Tape and Reel or Ammo Pack.
• Available with Optional UL Shrink Tubing.

Electrical

• Inductance Range: 15uh - 27uh, Available from 3.9uh to 100mh
• Tolerance: 10% over entire inductance range. Available in tighter tolerances.
• Test Frequency for (L): 15.5Khz, 0.1v
• Operating Temp: -40°C to +85°C
• Isat: DC current at which the inductance drops 10% typ from its initial value without current.
• Irms: DC current based on 300 circular mils per Amp.
• MLS: 1

Test Equipment

• (L) & (Q): HP 4342A & HP4285A
• DCR: CH301 Current Source and DCR Meter.

Physical

• Packaging: 200 pieces per tape and reel, 50 pieces per bag.
• Marking: With optional tubing parts marked with EIA Inductance Code.
